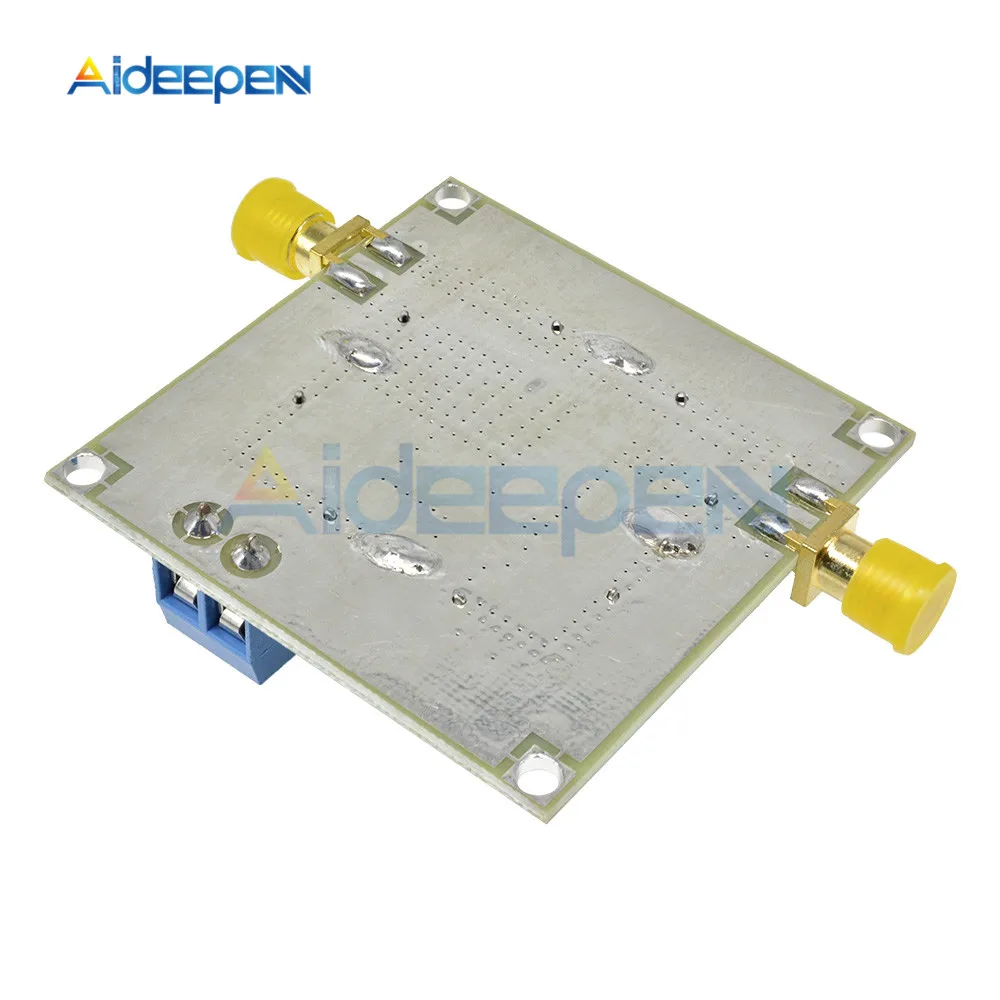

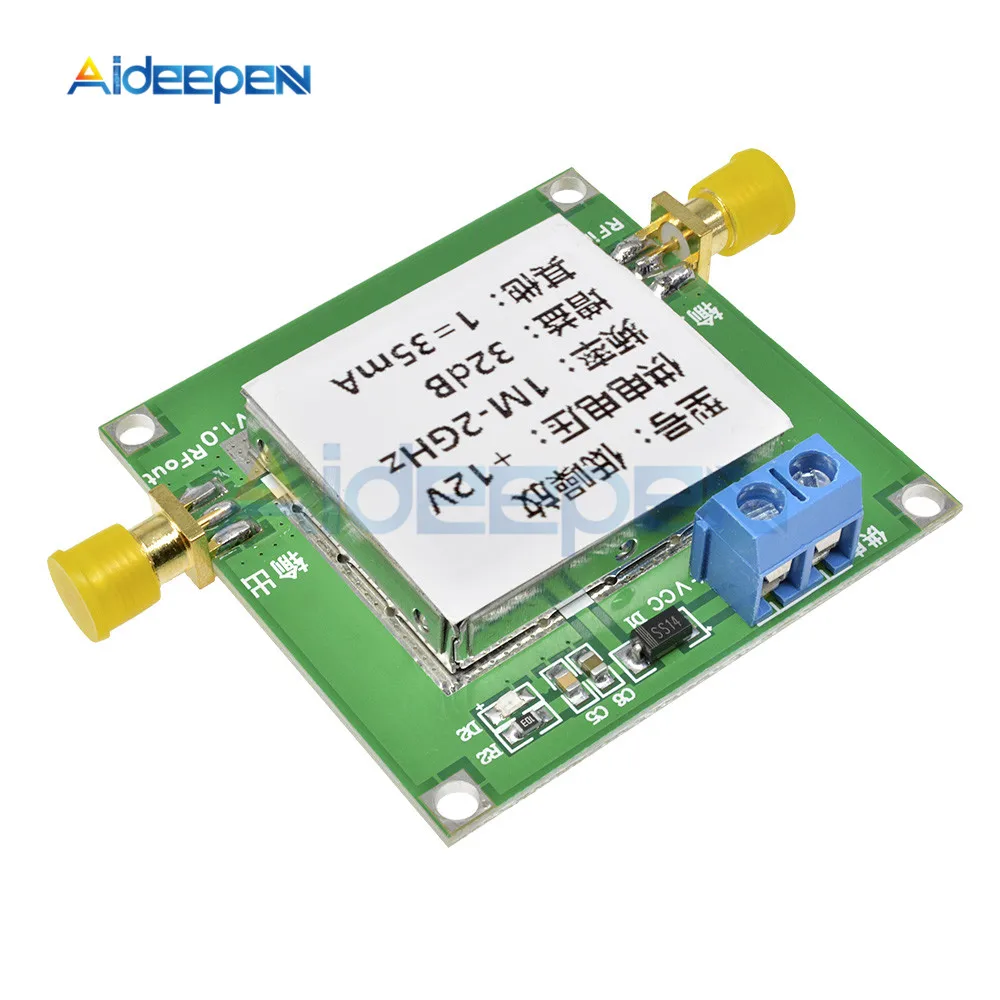

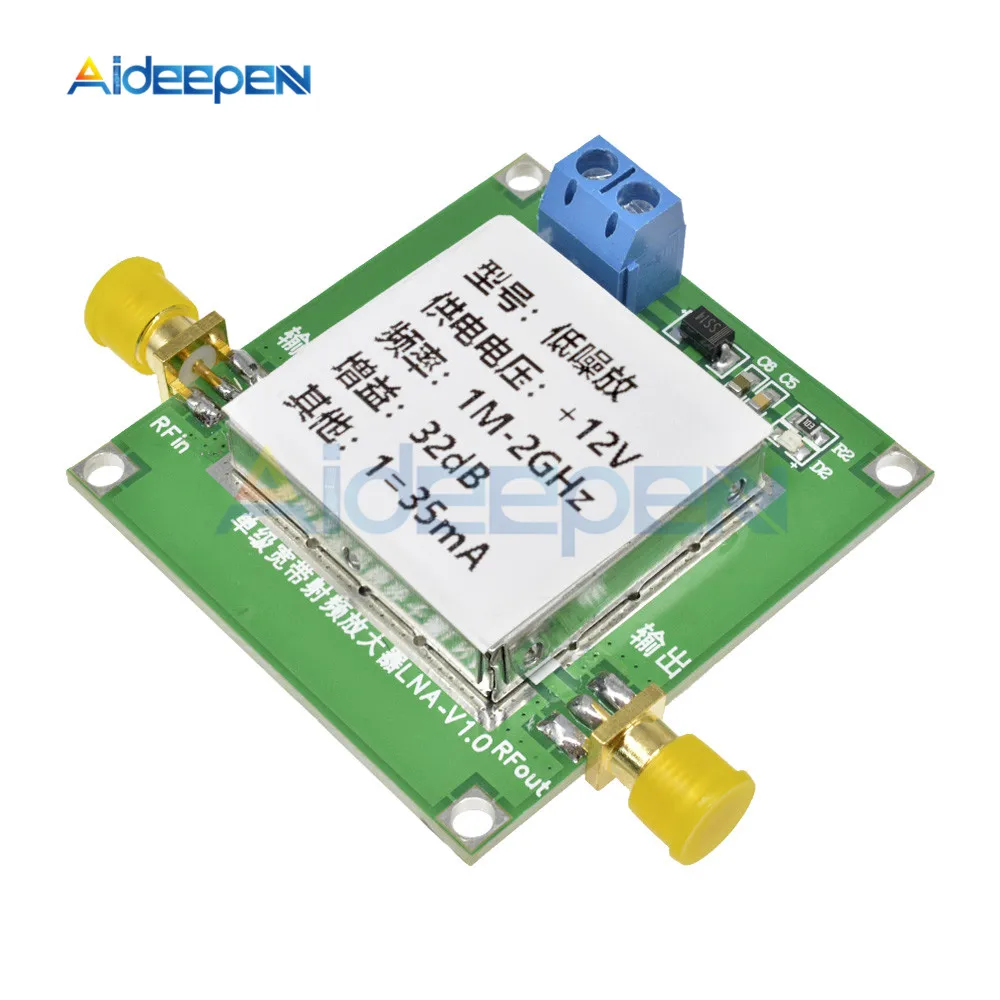

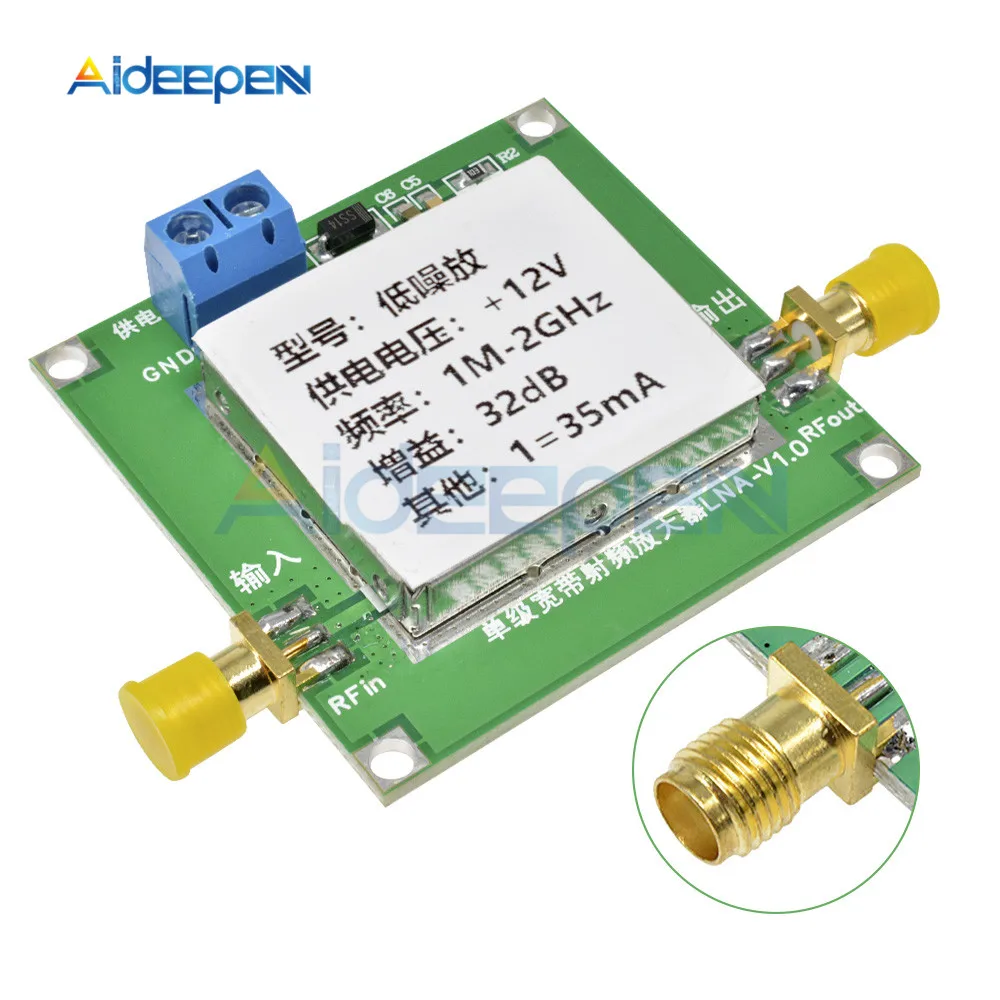

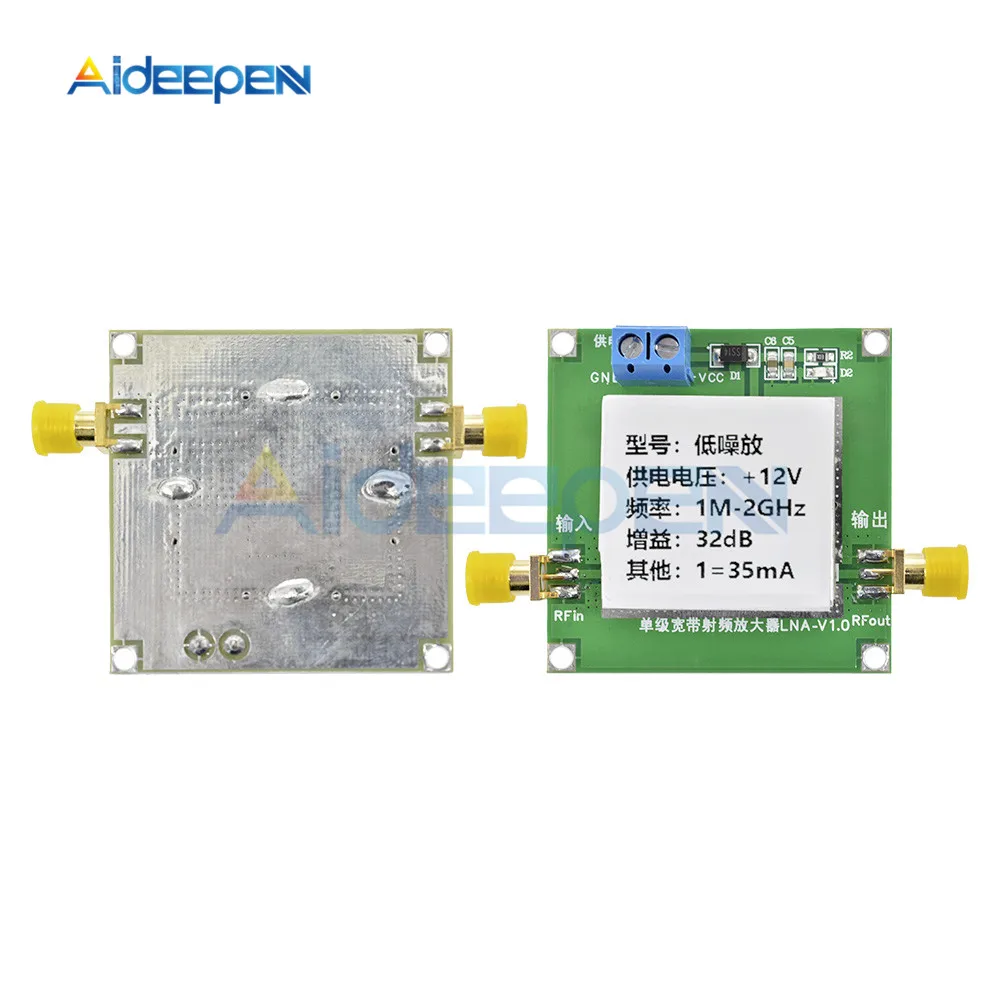

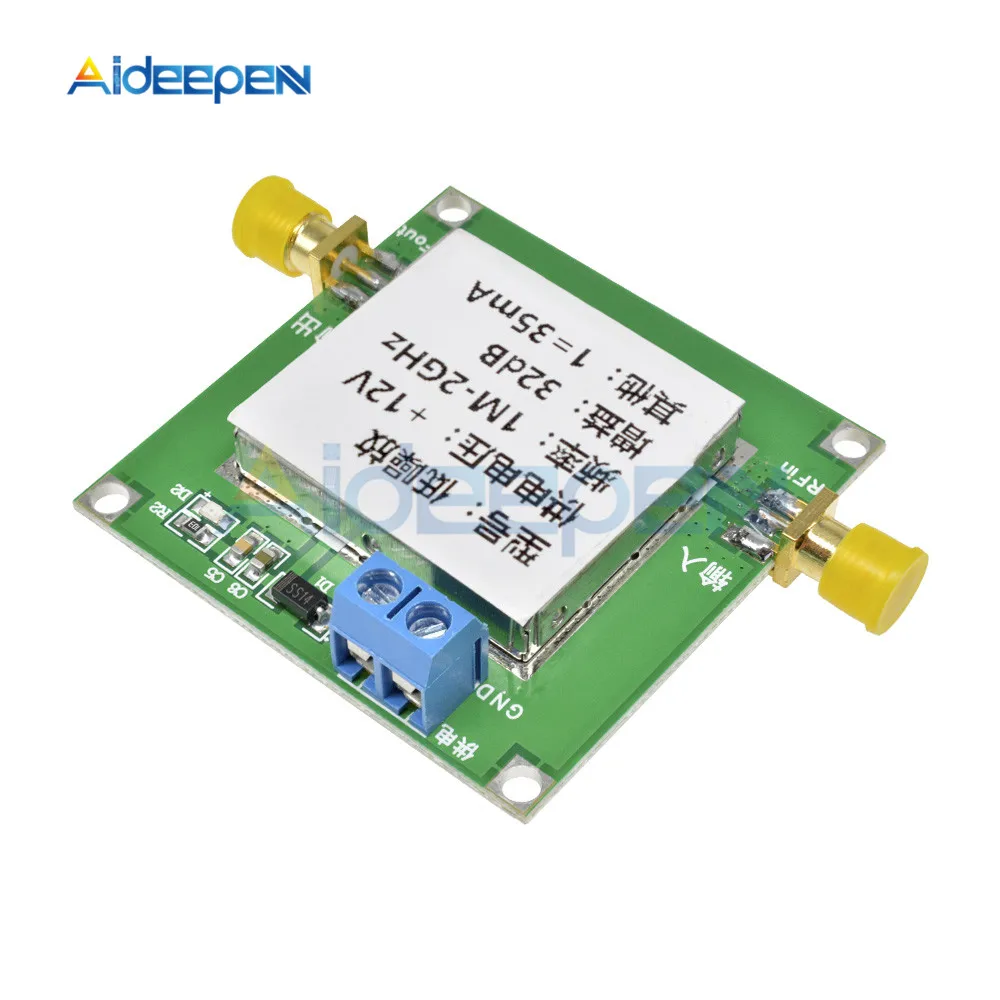

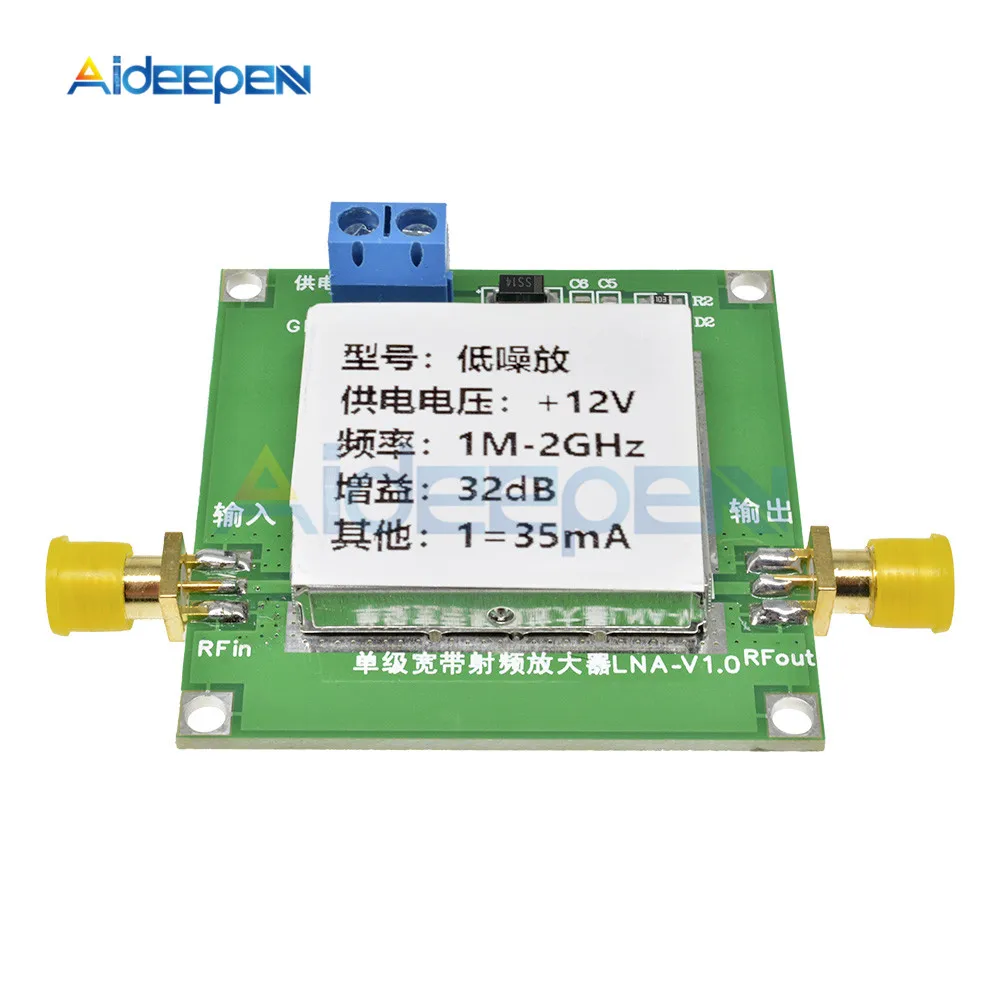

DC 12V 0.01-2000MHz 2Ghz 32dB LNA RF Broadband Low Noise Amplifier LNA Module UHF HF VHF Low dB with Shielded Shell
Description:
1, the supply voltage: 12V DC (current 35MA) with a shielded shell
2, gain: 32DB input and output impedance: 50 ohms
3, the maximum output power: 10dBm (2VPP \ 50 ohm load)
4, the input signal: <= - 22DBM (greater than -22 dBm input when the output signal has been distorted)
5, bandwidth: 1MHz to 2GHz (different frequencies of the gain is different, please refer to the specific S21 curve indicators)
6, the noise figure: 2dB (0.5GHz measurement)
7, other: need different gain value, you can reduce the supply voltage, or custom.
Package Included:
1 x 0.01-2000MHz 2Ghz 32dB LNA RF Broadband Low Noise Amplifier LNA Module
