Description:
1.Output Waveform:randon wave(Sine, square wave (adjustable duty cycle), triangle wave, sawtooth wave)
2.Output Range:0.5~8Vp-p (empty load)
3.Output Impedance:10 ohm +/-10%
4.DC Polariization:+/-3V
5.Frequency Range: 0.01Hz~50KHz
6.Frequency Resolution Ratio:0.01Hz(10mHz)
7.Frequency Precision:+/-5*10 -6
8.Frequency Stability:+/-2*10 -6/3h
9.Sine Wave Distortion:<=0.8% (1kHz)
10.Triangle Wave:>=98% (0.01Hz~5kHz)
11.Square Wave Up/Down Time:<=3.8us
12.Square Wave Duty Cycle Range:1%~99%
13.Size:83*60*24mm
2.Output Range:0.5~8Vp-p (empty load)
3.Output Impedance:10 ohm +/-10%
4.DC Polariization:+/-3V
5.Frequency Range: 0.01Hz~50KHz
6.Frequency Resolution Ratio:0.01Hz(10mHz)
7.Frequency Precision:+/-5*10 -6
8.Frequency Stability:+/-2*10 -6/3h
9.Sine Wave Distortion:<=0.8% (1kHz)
10.Triangle Wave:>=98% (0.01Hz~5kHz)
11.Square Wave Up/Down Time:<=3.8us
12.Square Wave Duty Cycle Range:1%~99%
13.Size:83*60*24mm
Package Included:

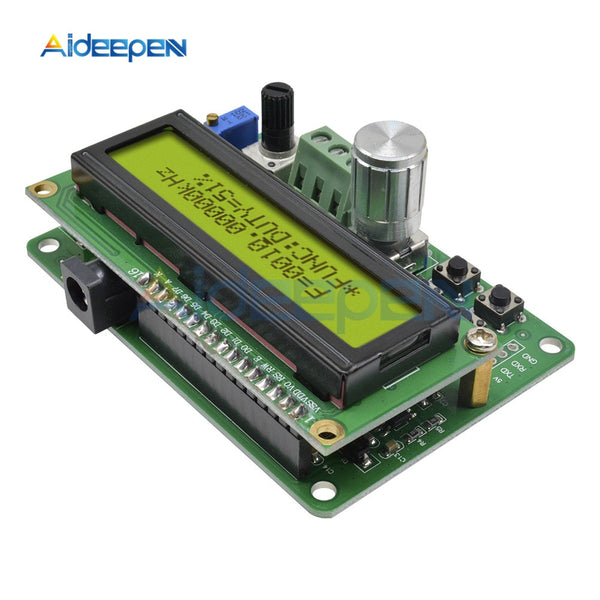

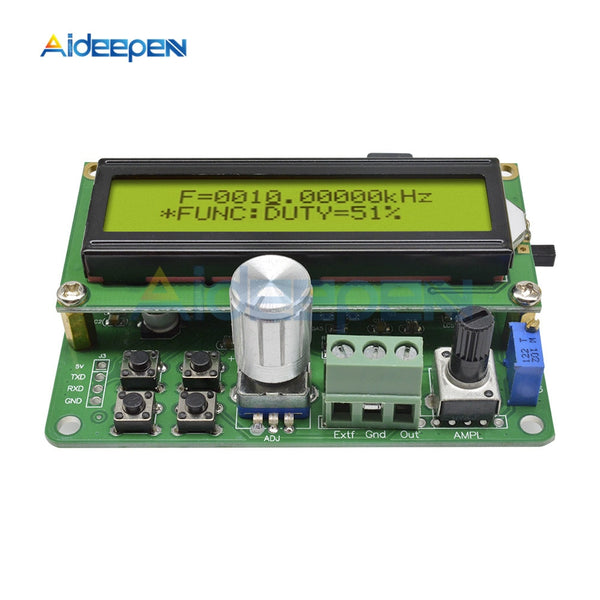

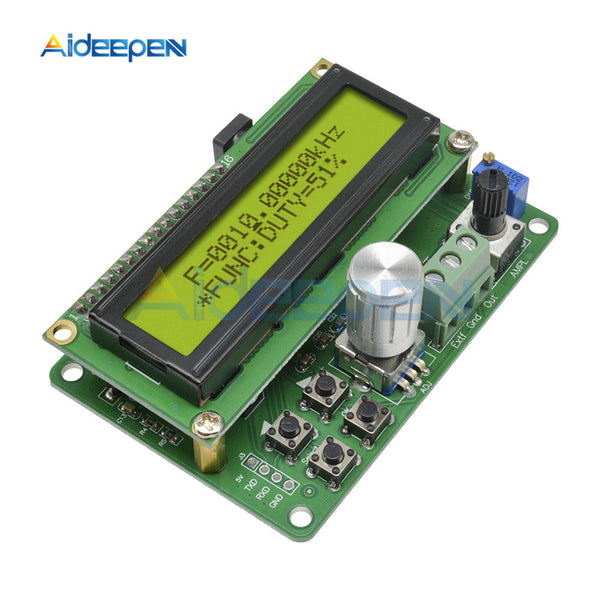

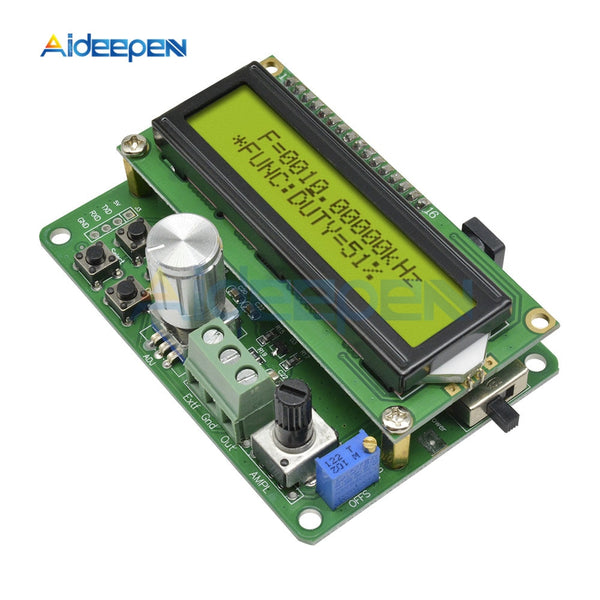

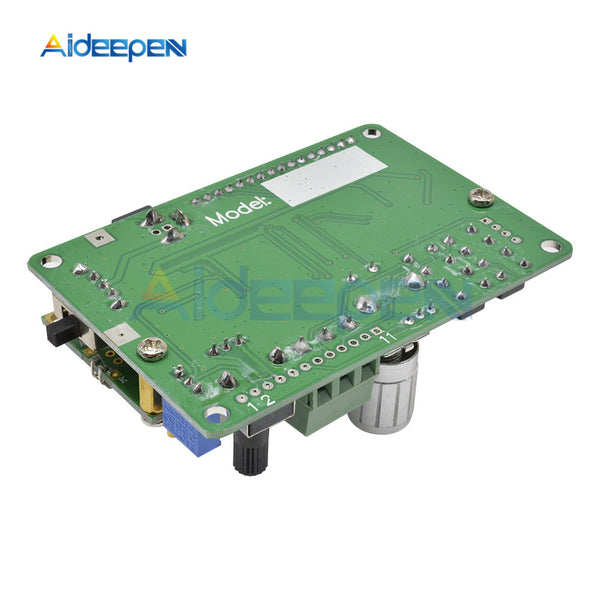

1 x FYE050 DDS Function Signal Generator Module 3V Random Waveform Triangle Sine Square Sawtooth Wave Duty Cycle Frequency Generator
