Description:
Power Supply: DC 5V
Relay Current: <50mA
Dimensions: 47x40mm
Instructions:
Please pay attention for your first use. You need wait 6s after your setting data, the module will save the date you have set after 6s.

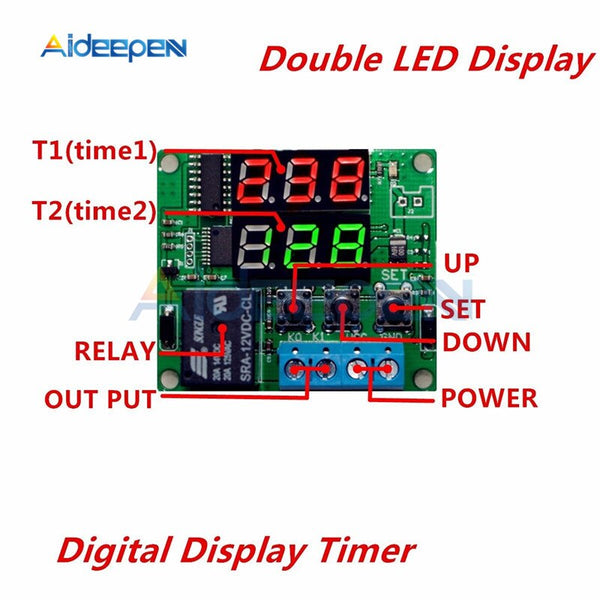

Short press button SET: If you start the time setting mode , Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date, the module will save the date you have set after 5s
Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1,you could set the timing mode by the button+ and button-.

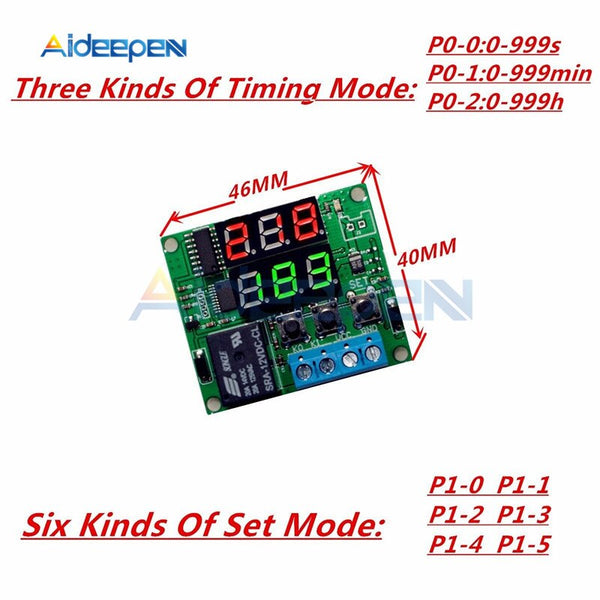

P0--0: timing mode is 0--999 seconds
P0--1: timing mode is 0--999 minutes
P0--2: timing when the pattern is 0--999
P1--0: T1 time delay relay (T1 timer)
P1--1: T1 delay time relay releases (T1 timer)
P1--2: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timing) ends.
P1--4: time delay relay after T1 (T1 timer), then the delay time T2 successor electrical release (T2 timer), repeat the cycle.
P1--5: T1 delay time relay releases (T1 timer), then the delay time T2 successor Electric energized (T2 timer), repeat the cycle.
Package Included:
1 xW1209 DC5V Thermostat Temperature Controller Regulator Switch Control Dual LED Digital Display Waterproof Sensor Module
