Description:
The product uses double voltage detector (composed of two reverse microwave diodes), single-tube detector sensitivity than doubled (6dB), with high sensitivity (typical -30dBm, or even to -40dBm) , Not the ordinary 2AP9, 1N60 can shoulder to shoulder.

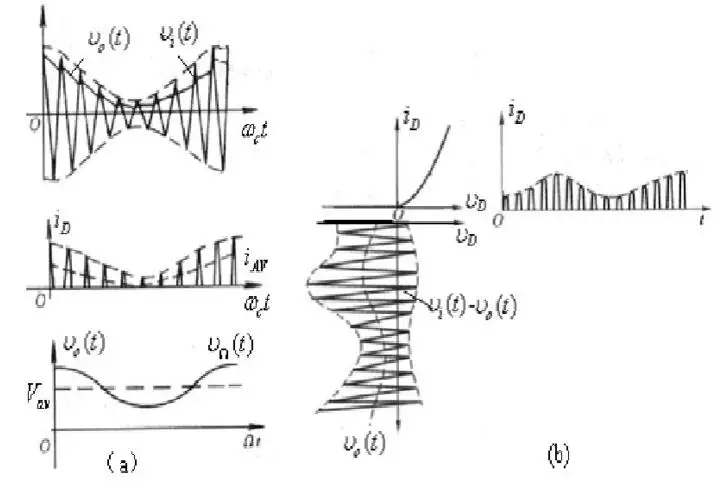

envelope detection principle
Specifications:
Maximum input: 20dBm
Detection output: the default is positive (such as the need for negative output can contact the store)
Operating frequency: 0.1 - 3200MHzRC filter: R = 10K, C = 1nF; (output port of the two parallel components)
If you want to lower the frequency, you can increase the output capacitor, if you want to respond fast, the need to reduce the capacity, which is a contradiction, you can configure according to their needs
Package Include:

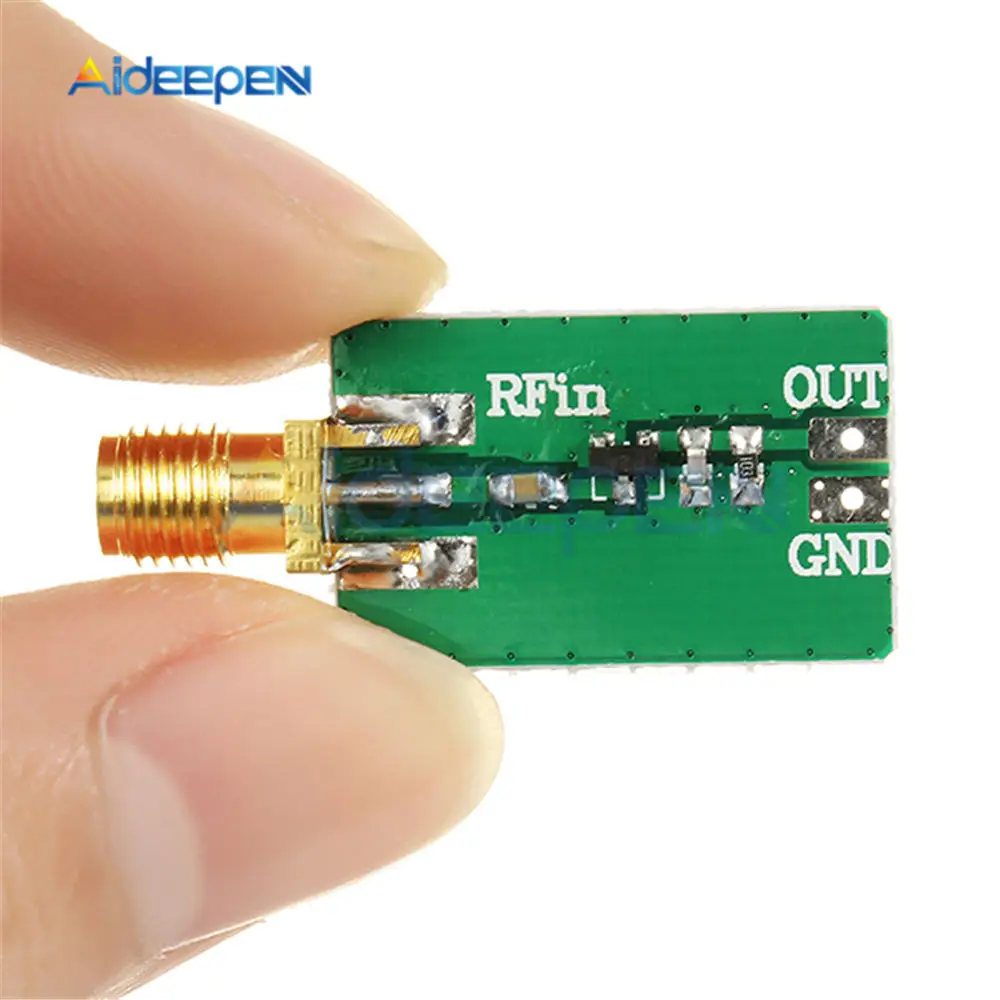

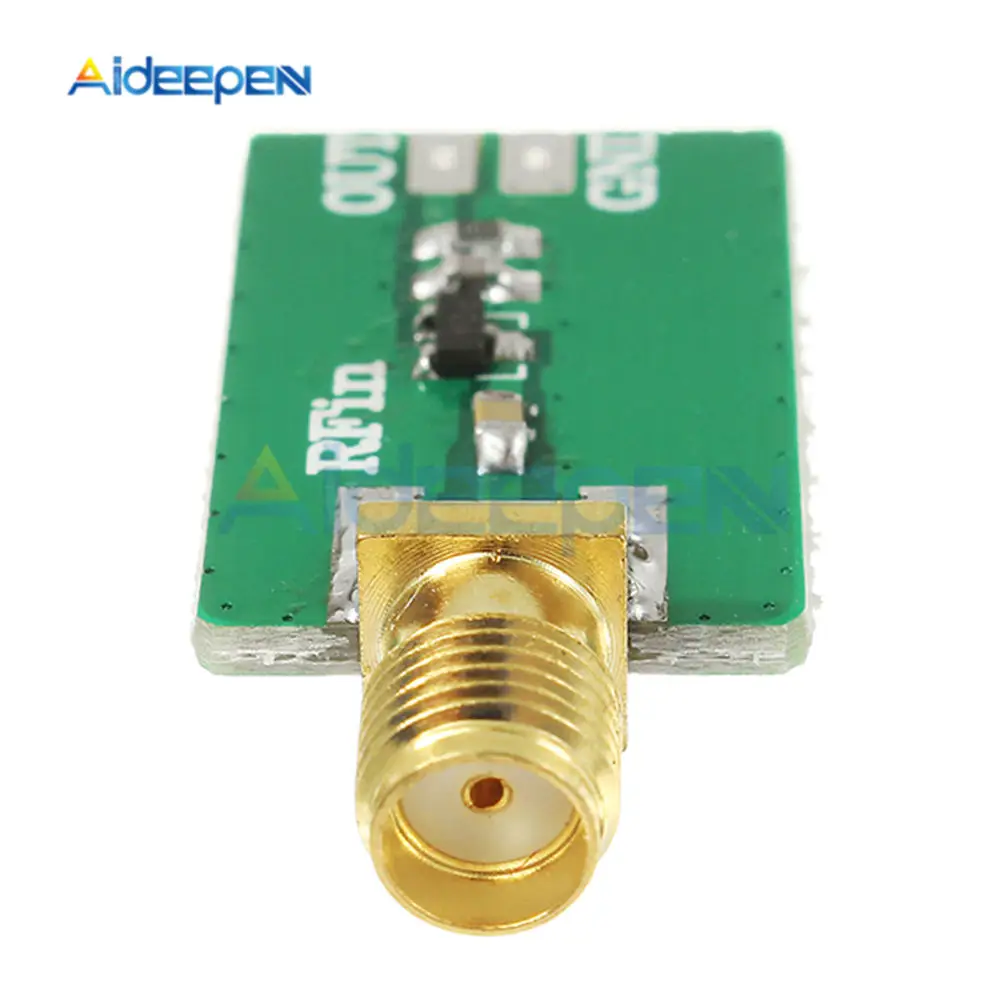

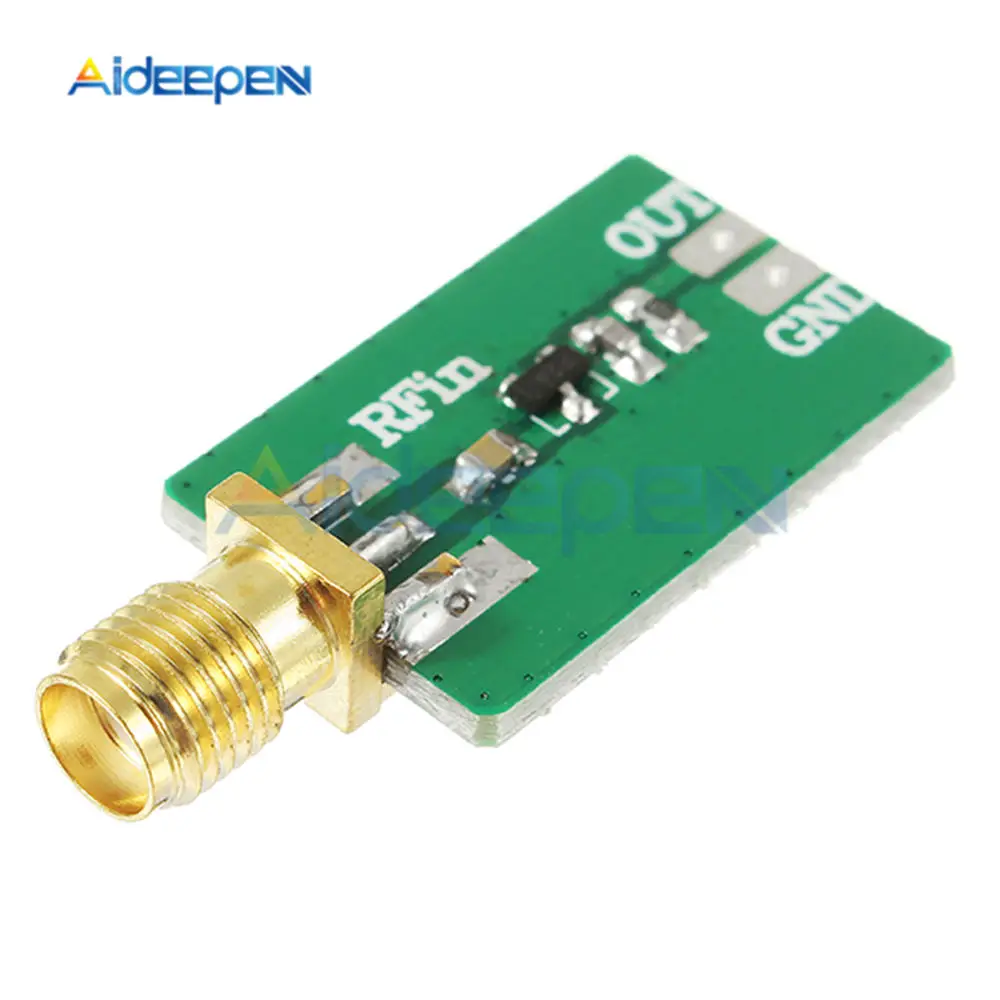

1 x 0.1-3200MHz RF Envelope Detector Amplitude Detection Discharge Signal Detection AM
