Item description:
(1) Operating voltage: 1.8V ~ 3.6V, recommend close to 3.6V, but not more than 3.6V (recommended 3.3V);
(2) Work on the 2400-2483.5MHz ISM band and SRD;
(3) Maximum operating speed of 500kbps, support for 2-FSK, GFSK and MSK modulation ;
(5) Built-in hardware, CRC error detection and point-to-multi-points communication address;
(6) Low power consumption: TX: 21.2mA , RX: at 0dBm at 250kbps 13.3mA ;
(7) Programmable output power , maximum output power : 0dBm, minimum : -10dBm, data rate from 1.2kbps to 500kbps ;
(8) Supports low-power electromagnetic waves activate , external interrupt wake-up, external interrupt , RTC wake up the system ;
(9) Support transmission automatically clean channel access (CCA), Carrier Sense system ;
(10) Fast frequency adjusted synthesizer , frequency hopping systems ;
(11) Modules can software addressable ;
(12) Standard hole interface, easy to embedded applications;
(13) Separate 64-byte RX and TX data FIFO;
(14) Few external components, high reliability ;
(15) Module visual line communication distance of 30 meters ~ 60 meters (open area ) ;

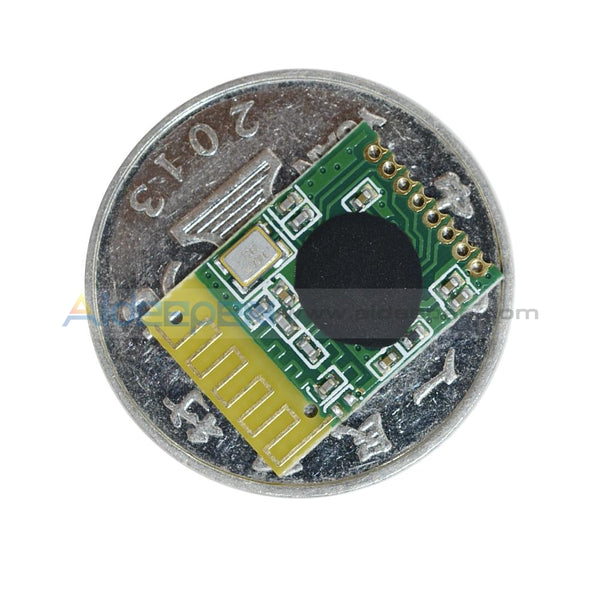

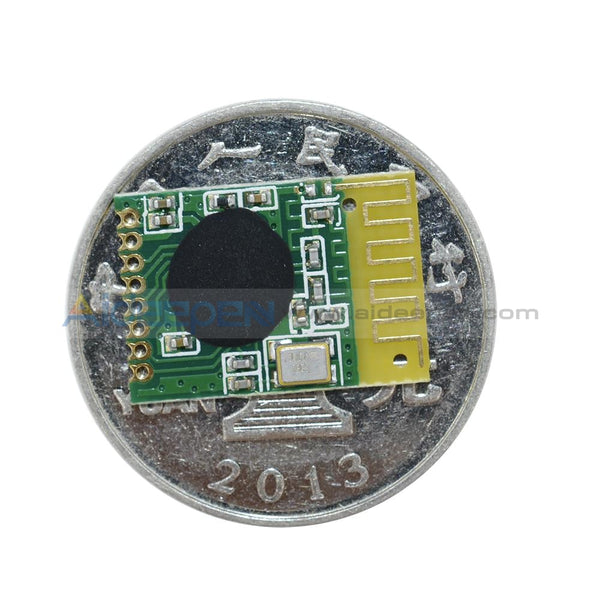

(16) Module Size 18.5mm * 12mm (PCB onboard antenna) ;
Package Include:

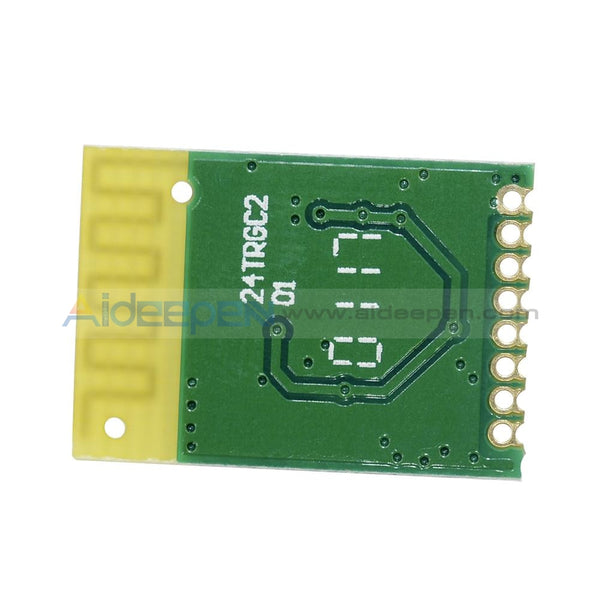

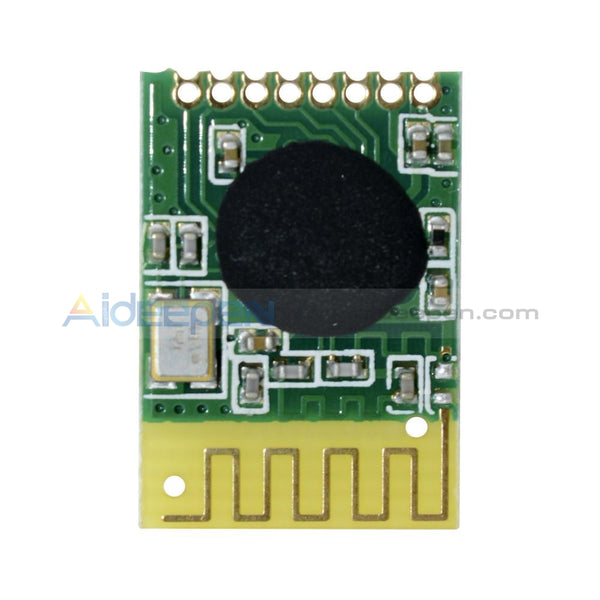

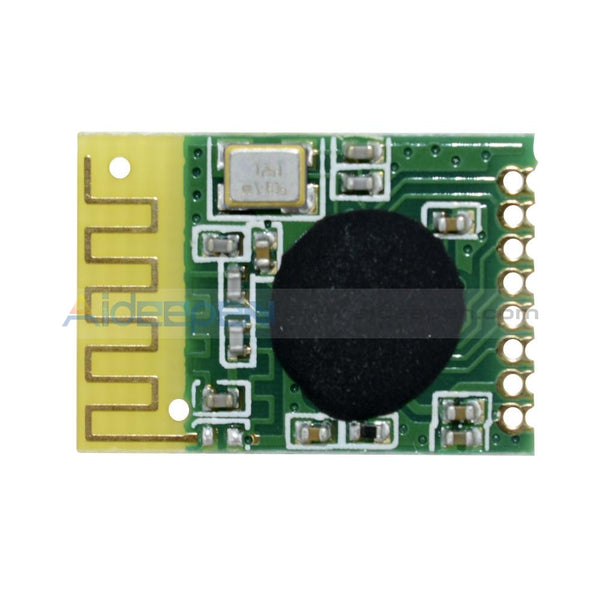

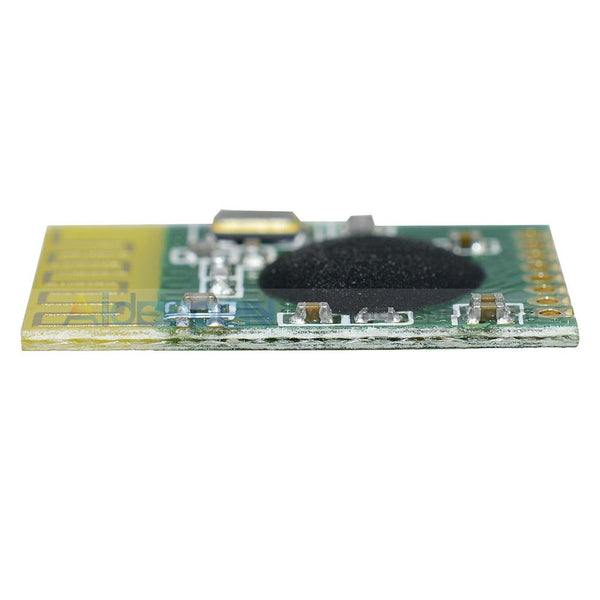

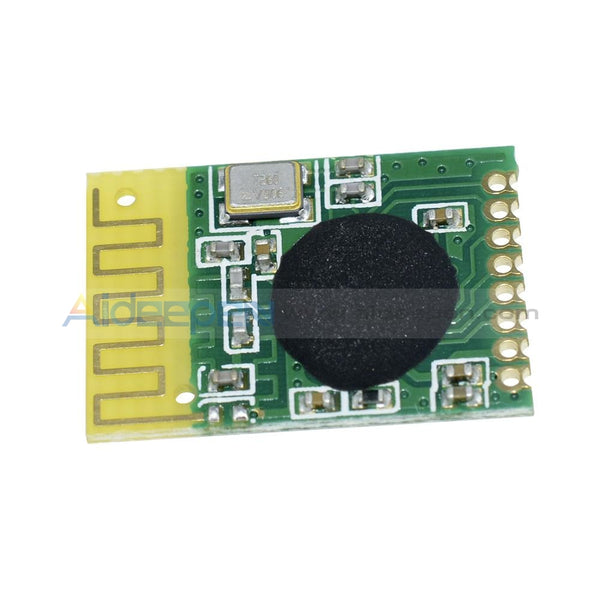

1 * 1.8-3.6V CC2500 IC Wireless RF Transceiver
