Features:
12 Mbps support USB 1.5 Mbps at low speed and full speed does not support pure high-speed equipment
Support USB control transfer, bulk transfer, interrupt transmission, synchronous transmission/etc
Power supply: from the USB port to the PC host
Avoid driving, it is more convenient to use
Specifications:
Compatible with USB2.0
ADUM3160 isolation voltage: 2500V
Power module: isolation voltage 1500V
Using the environment: - 40 ℃ to 85 ℃
After a test support equipment:
-Full equipment:
USB flash drive, digital camera, card reader, mobile hard disk, U aegis,, USB hub, AVRJTAG, AVRISP, AVRISPMKII, S - Lab, JET51, J - Link, FET430UIF, PICKIT2, XDS100, LPC cc-link, ICD2, USB serial port (FT232, CP2102, PL2303, CH341 chips).
-Low speed devices:
Keyboard, mouse, USBASP, USBHID equipment, USBCDC equipment.
Tested part does not support the USB wireless network card, see USB flash drive.
Package included:

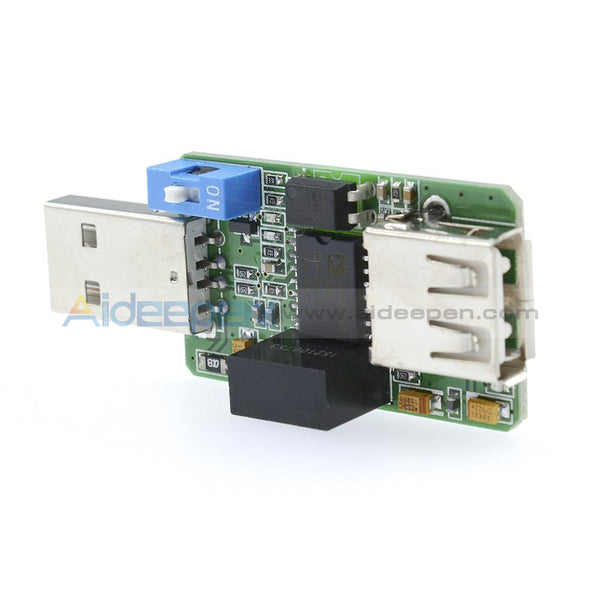

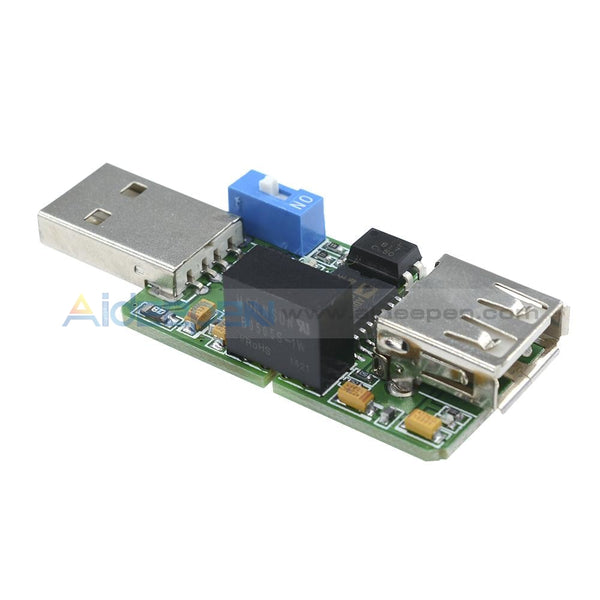

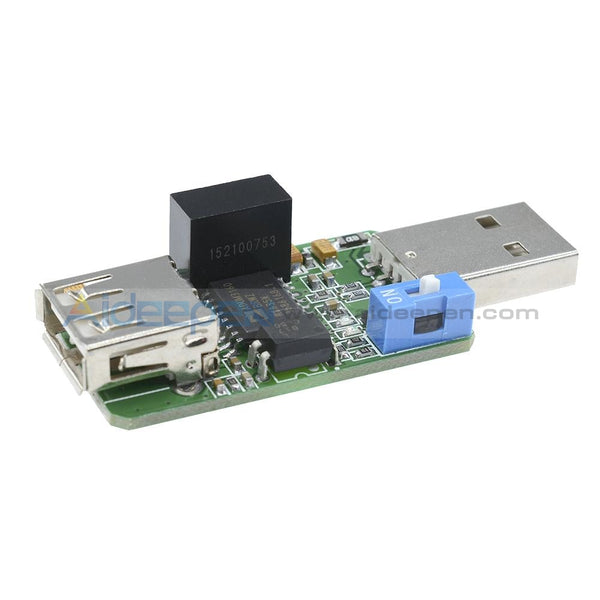

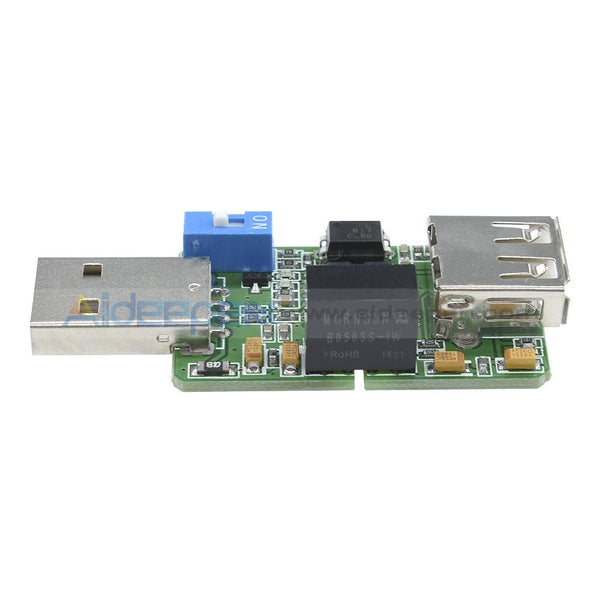

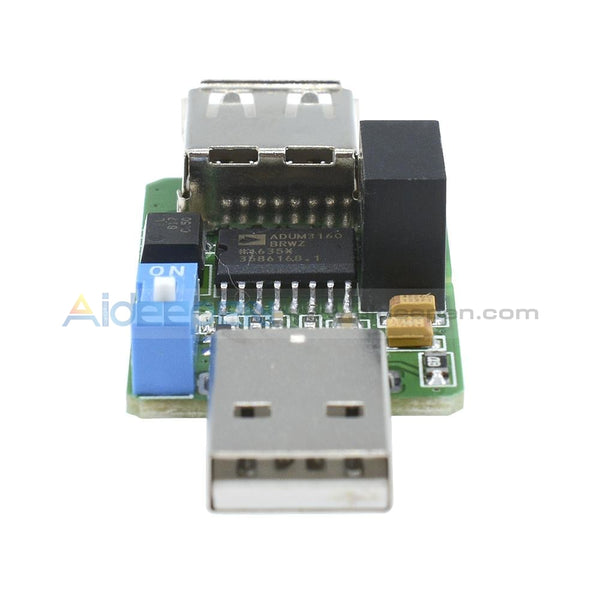

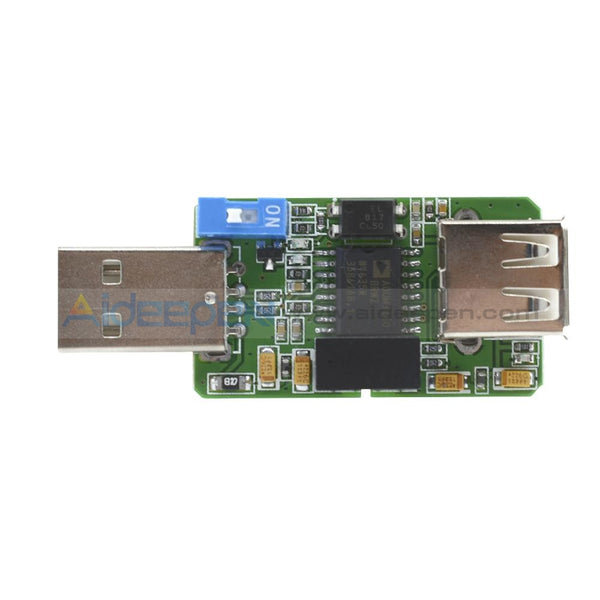

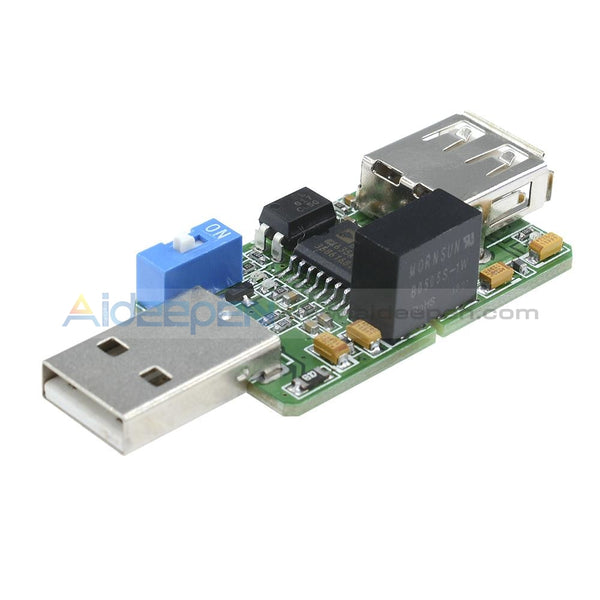

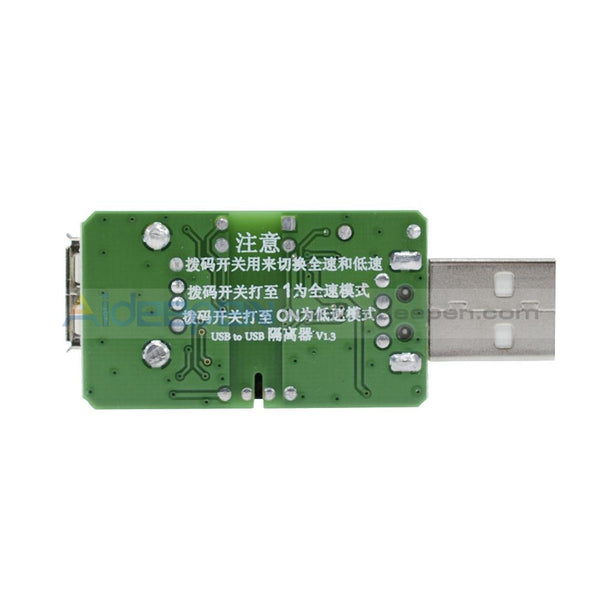

1x USB To USB Isolator
