Module name: 600W boost constant current module
Module nature: non-isolated step-up module (BOOST)
Input voltage: DC10V-60V
Input current: 10 (MAX)
Static operating current: 10mA (12V liters 20V, the higher the output voltage will be too much static too much)
Output voltage: 12-60V continuously adjustable (default output 19V shipping, for other voltage please note to the treasurer.)
Output current: 10A MAX more than 6A please strengthen the heat (with the input and output pressure, the greater the difference in output current smaller)
Constant current range: 0.2-10A
Output power: = input voltage * 10A, such as: input 12V * 10A = 120W, input 24V * 10A = 240W, input 36V * 10A = 1360W, input 60V * 10A = 600W,
Operating temperature: -40 ~ +85 degrees (when the ambient temperature is too high, please strengthen the heat)
Operating frequency: 150KHz
Conversion efficiency: 92% -96% (efficiency and input, output voltage, current, pressure related)
Input reverse connection protection: no (note positive and negative do not reverse)
Installation: 4 3mm screw holes
Wiring method: wiring output
Module size: length 85mm wide and 52mm high 21mm
Module weight: 80 grams
First, the output voltage regulation:
1, adjust the CV-ADJ potentiometer, according to your battery or LED, the output voltage is set to the voltage you need. Clockwise voltage is small, counterclockwise adjustable
First, the output current regulation:
2, clockwise CC-ADJ potentiometer about 20 laps, the output current is set to a minimum, connected to the LED, CC-ADJ potentiometer to the required current. For battery charging, put the battery after the end of the power, then receive the output, adjust the CC-ADJ to the current you need, (for charging must be used when the battery is fully charged, because the battery left The more charge, the smaller the charge current.
Please do not use the short circuit to adjust the current, the boost module circuit structure can not be short-circuit way to tune.
Package Include:

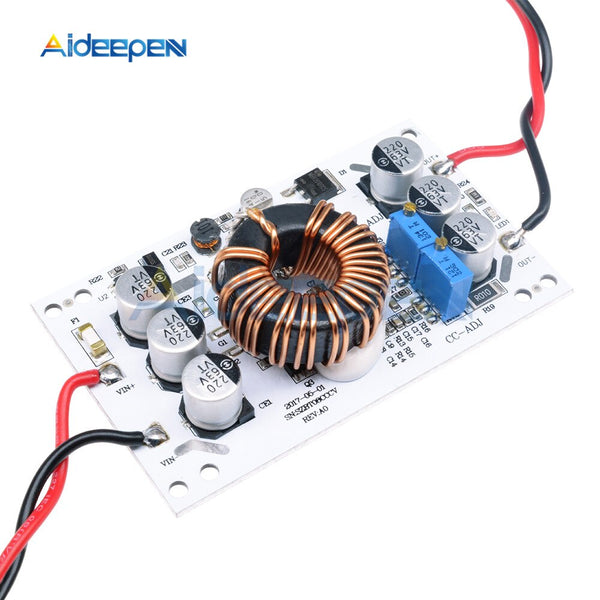

1 x 600W Aluminum Plate DC-DC Boost Converter Adjustable 10A Step Up Constant Current Power Supply Module Led Driver For Arduino
