ADM62 Auto Range Digital Multimeter 2000 Counts DC/AC Ammeter Voltmeter Diode Ohm Transistor Tester Multi Meter True RMS DMM
Description:
Digital TRMS multimeter

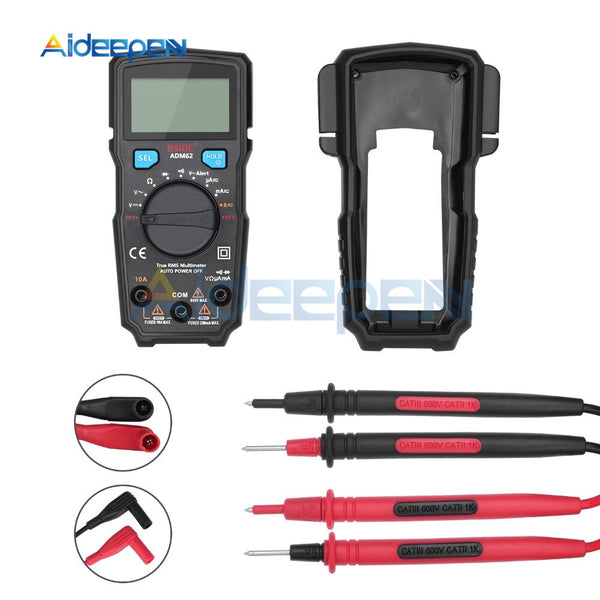

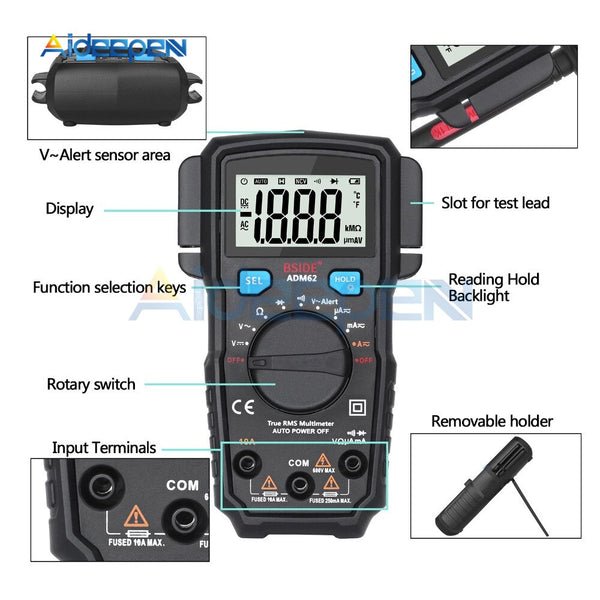

Unique dual test lead slot design means new fixed style, unsheathed-type for handsfree measurement, sheathed-type for safe storage
Measure DC/AC current not only in mA/A mode, but aslo in uA mode
AC/DC voltage, v-alert, resistance, diode, continuity measurement
Large LCD with backlight for simple reading
Auto range, data hold, Auto power off, polarity and low battery indication
Widely reserved in schools, automotive maintenance, factories, etc. Ideal for home users, maintenance enthusiasts, electricians and technicians
Specifications:
Max Dispaly: 2000 conuts
DC Current: 200uA/2000uA/20mA/200mA,0.1uA/1uA/0.01mA/0.1mA±(1.0%+5); 10A,0.01A±(2.0%+5)
AC Current: 200uA/2000uA/20mA/200mA,0.1uA/1uA/10uA/100uA±(1.0%+5); 10A,10mA±(3.0%+5)
DC Voltage: 200mV/2V/20V/200V,0.1mV/0.001V/0.01V/0.1V±(0.5%+2); 600V,1V±(0.5%+5)
AC Voltage: 2V/20V/200V,0.001V/0.01V/0.1V±(1%+3); 600V,1V±(1.2%+3)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ,0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ/0.001MΩ±(0.8%+2); 20MΩ,0.1MΩ±(1%+2)
Continuity: If the resistance is less 30Ω, the continuity beeper sounds
Power: 1.5V (AAA) * 2(Battery Not Include)

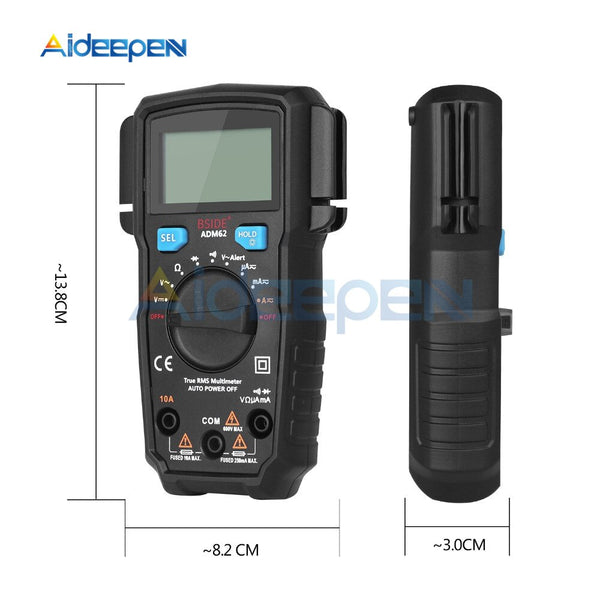

Size: 139*83*36mm
Weight: 160g

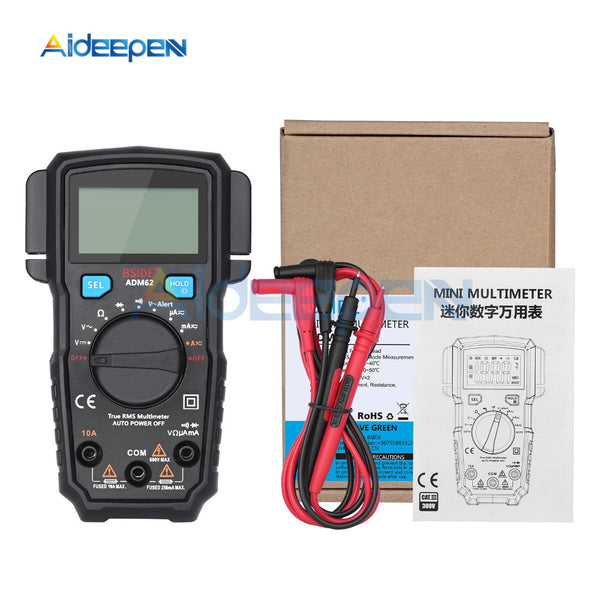

Package Includes:
1 x Digital Multimeter
1 x CAT III 600V Test Leads
1 x User Manual
