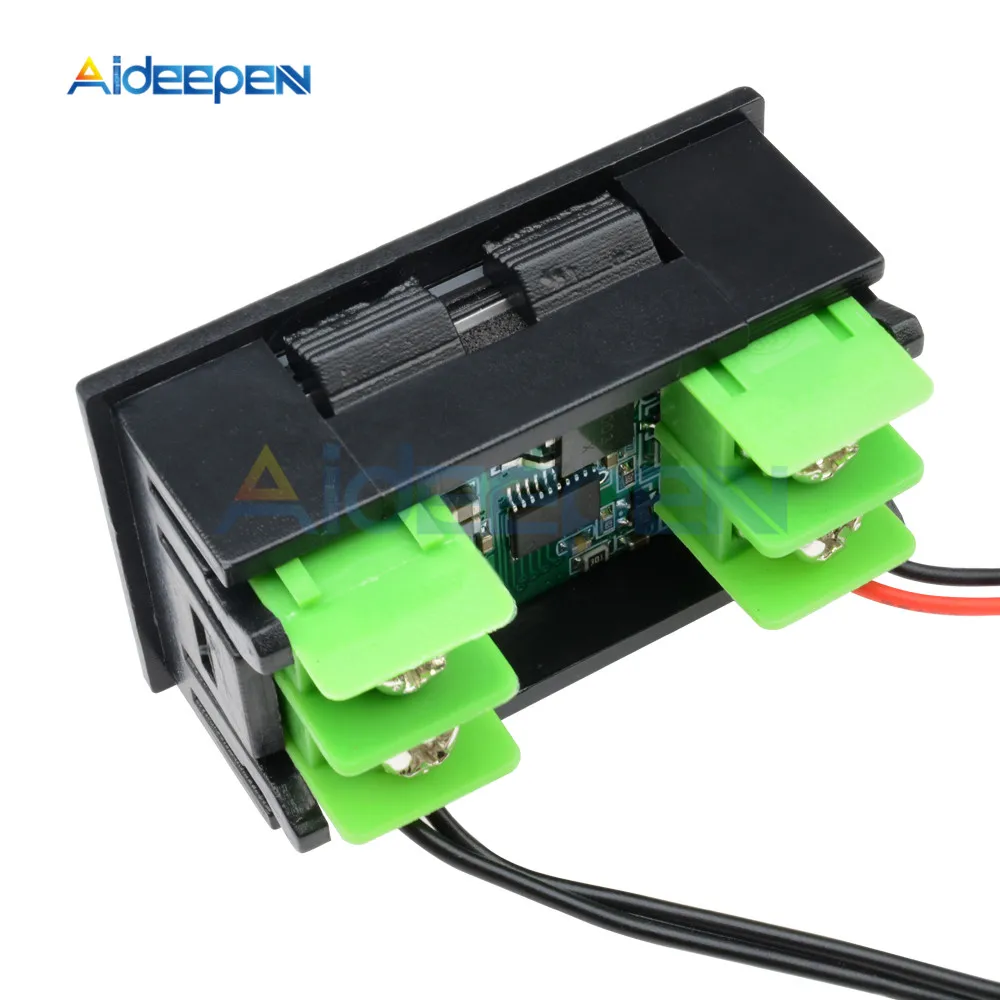

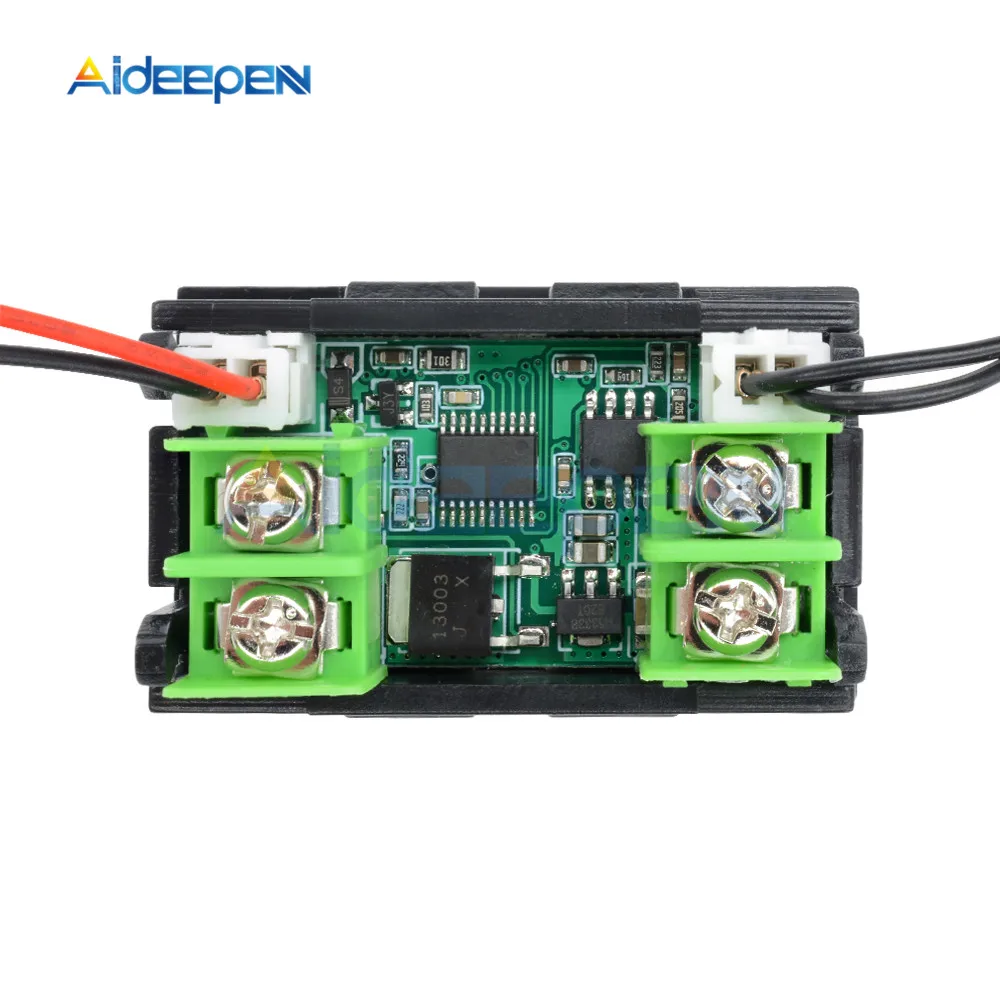

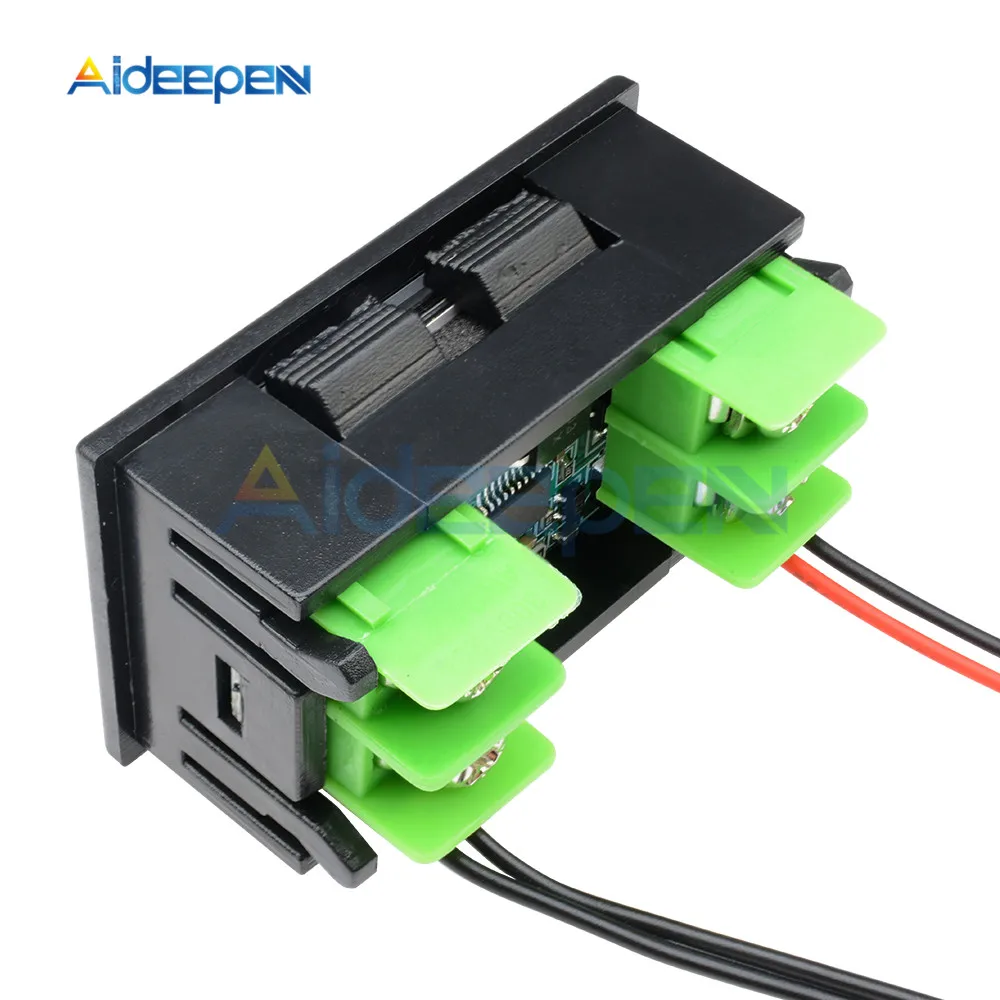

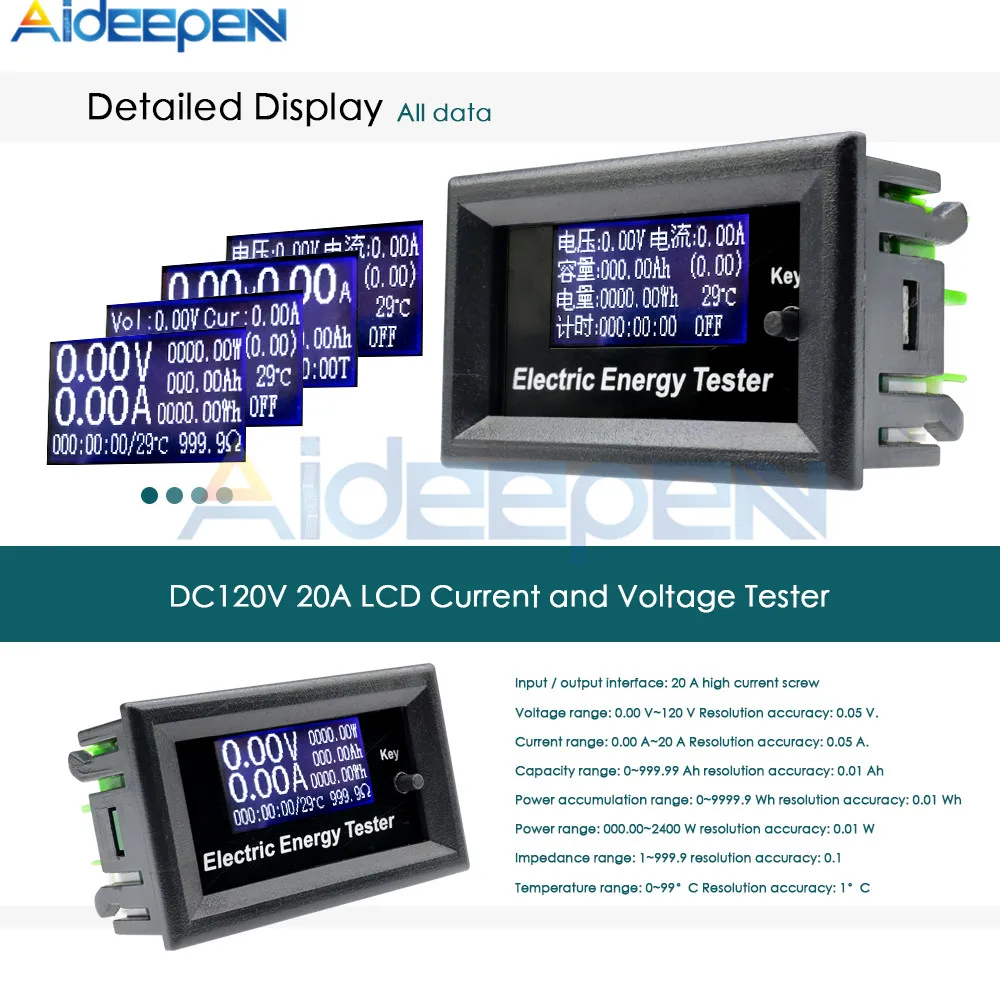

Input / output interface: 20 A high current screw
Voltage range: 0.00 V~120 V Resolution accuracy: 0.05 V.
Current range: 0.00 A~20 A Resolution accuracy: 0.05 A.
Capacity range: 0~999.99 Ah resolution accuracy: 0.01 Ah
Power accumulation range: 0~9999.9 Wh resolution accuracy: 0.01 Wh
Power range: 000.00~2400 W resolution accuracy: 0.01 W
Impedance range: 1~999.9 resolution accuracy: 0.1

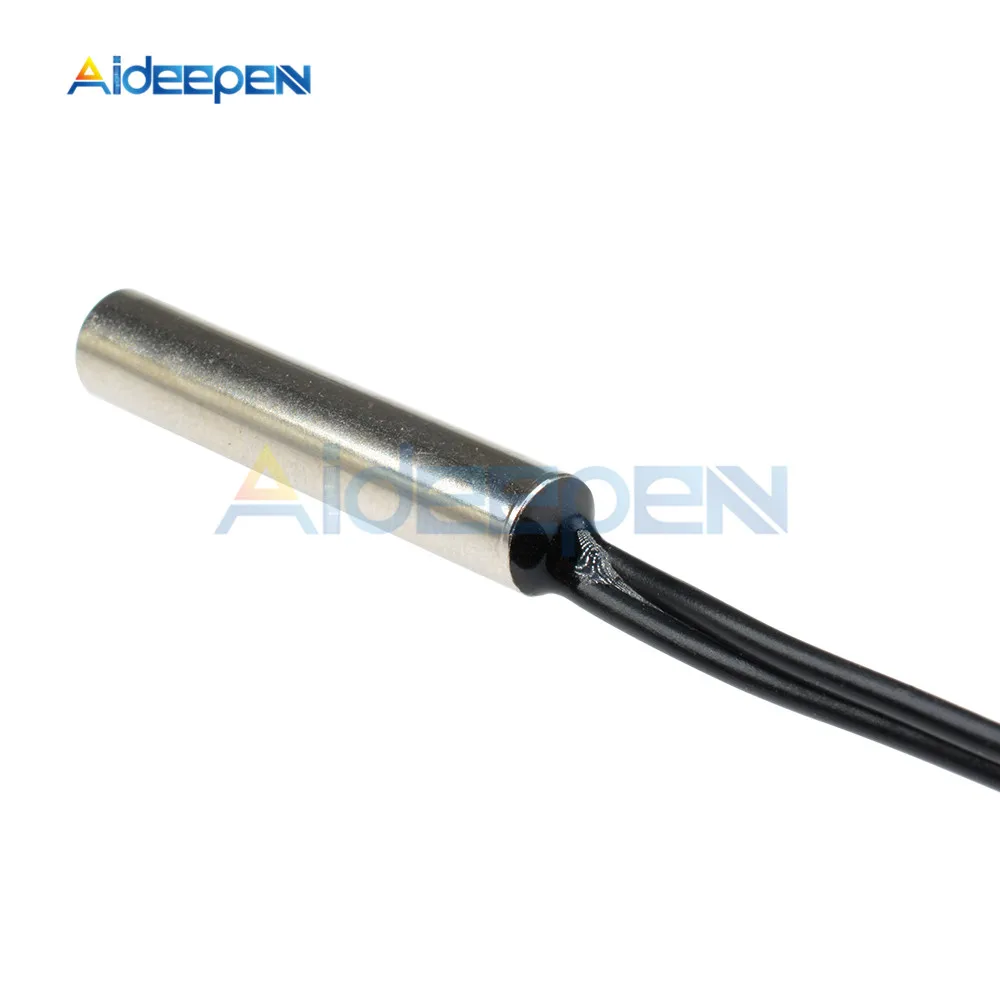

Temperature range: 0~99°C Resolution accuracy: 1°C
The longest time: 999H59M59S resolution accuracy: 1S
Time reminder setting: count down any value for 24 hours
Small current standby alarm threshold parameter: <2 W / 0.5 H.
Small voltage power requirements: measurement <7.8V

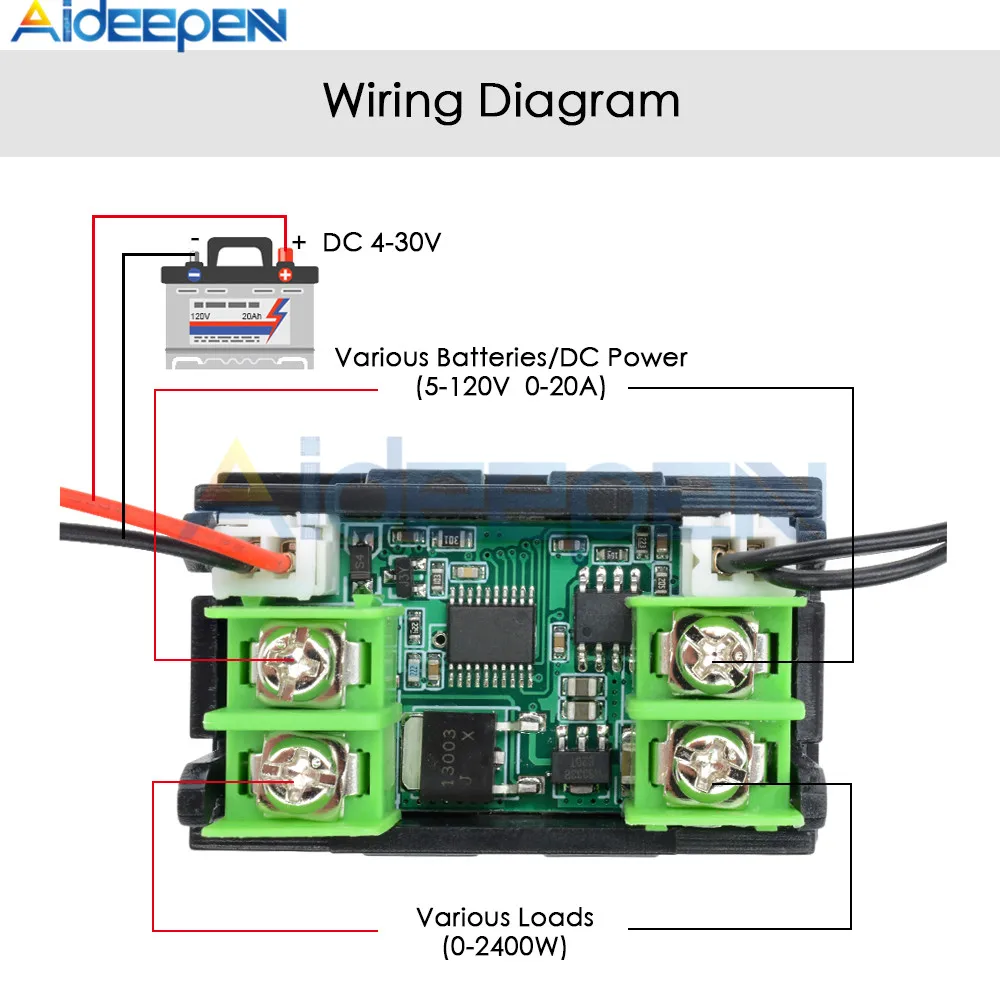

Low voltage, please provide independent power interface
4~30V DC supply voltage range of the measurement system
Refresh time: > 500 ms / hour > 500 ms / time
Measuring speed: 0.5 times per second

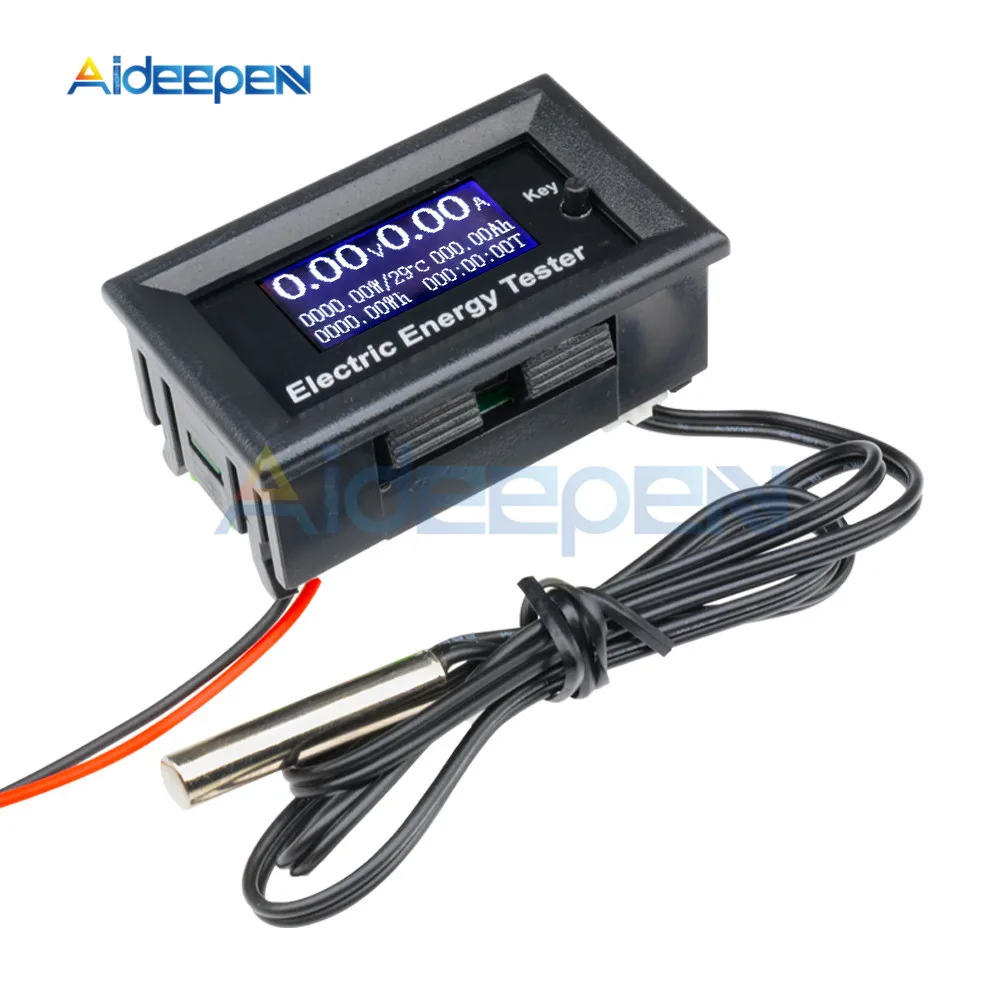

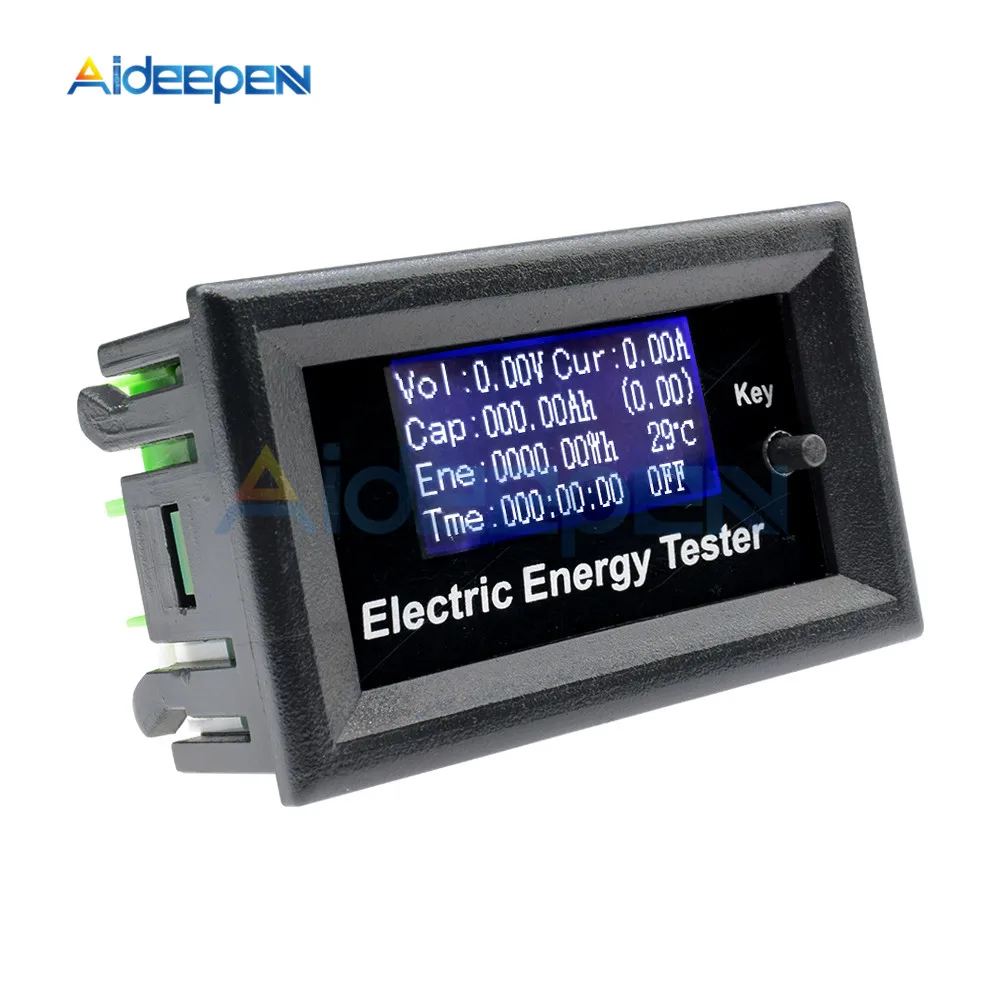

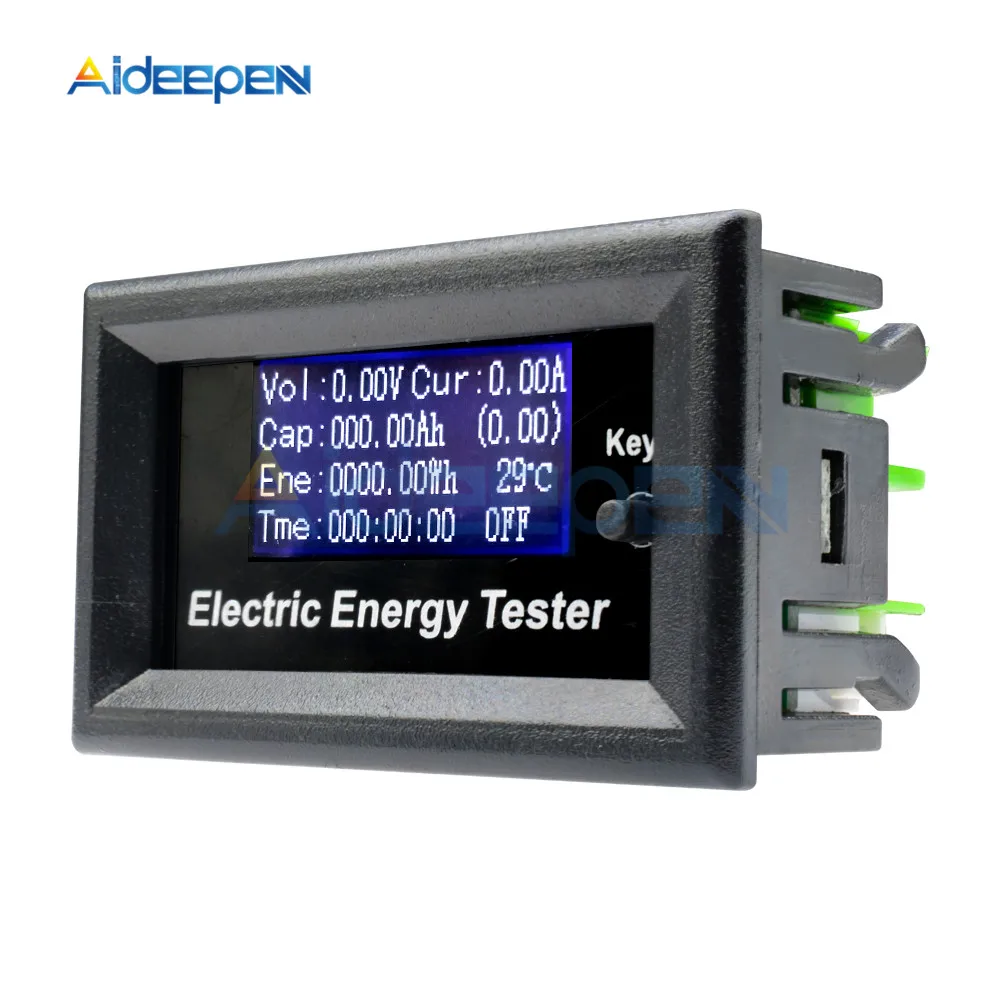

Display Type: Micropower consumption of LCD module LCM black font
Chinese and English green backlit display

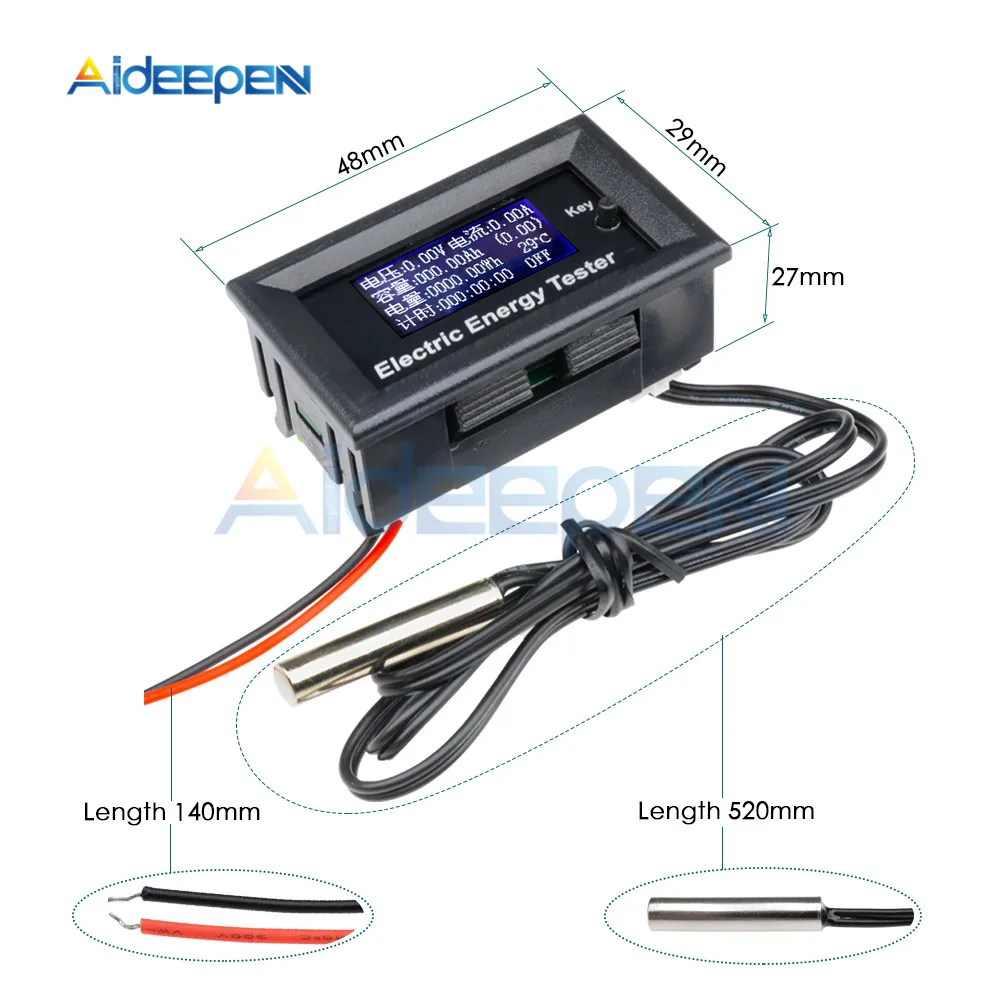

Product size: 105 x 81 x 17mm
Due to power flow: <0.02 A
Working temperature: -10~ + 60 degrees Celsius -10~ + 60°C
Working humidity: 10~80 (dew) undoubtedly 10~80 (no doubt)
Working pressure: 80~106 kpa
