Description:
TTL-WiFi is designed and developed based on ESP-M2 WiFi module, which is extracted the TTL, EN, STATE and other pins. Importantly, the TTL-WiFi is already built-in the serial transparent transmission firmware programmed by our company (SZdoit), which can realize the transparent transmit the data to the cloud on the real-time, together with low-power control, status indictor. This board can replace the old wiring serial WiFi device to realize the data collection and control.
Fully compatible with the original electrical interface and physical interface for the serial transparent Bluetooth;
Built-in the industrial transparent transmission firmware V3.0 with stability and reliability by using the Web Configuration;
Built-in the high performance WiFi module ESP-M2 with size: 34mm17mm4mm
Working voltage: 4.5V~6.0V, TTL working voltage: 3.3V (compatible with 5.0V)
Provided pins: STATE, TXD, RXD,EN
Average current: 80mA; when data sent, it is 170mA; but it is 20μA at deep sleep mode;
Support serial AT command
Support re-programmable, OTA firmware update
Seamless transparent transmission between serial and WiFi
Built-in HTTP Web Server, support configure parameters by web page
Support re-connect automatically at WiFi STA mode and TCP Client
Support set baud rate, data bit, parity check, stop bits, and/or subcontracting time;
Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/
230400/460800/921600/1843200/3686400
Support AP enable, self-defined SSID/password, self-defined IP and network duration;
Automatically scan the peripheral WiFi hotspot, support STA enable, DHCP, self-defined IP;
Support TCP Server, TCP Client, UDP Server, UDP Client and UDP local broadcast;
Support DNS resolution automatically for the remote sever address
Support checking the status by AT command
Provide IO4 to show the WiFi status
Provide IO4 to show the WiFi status
Working temperature: -40 Degrees Celsius-125 Degrees Celsius
Applications:
smart home, wireless data connection and transparent transmission, smart car control, wireless serial printer, LED light industrial control etc.
The Structure of TTL-WiFi:

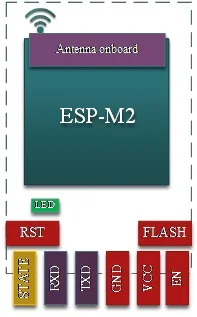

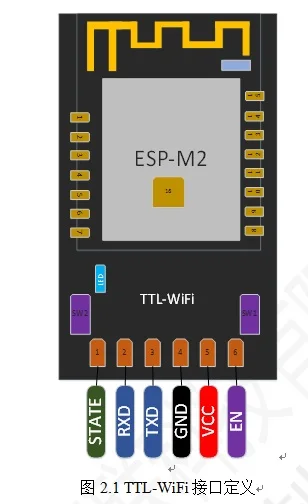

The interface definition of TTL-WiFi:

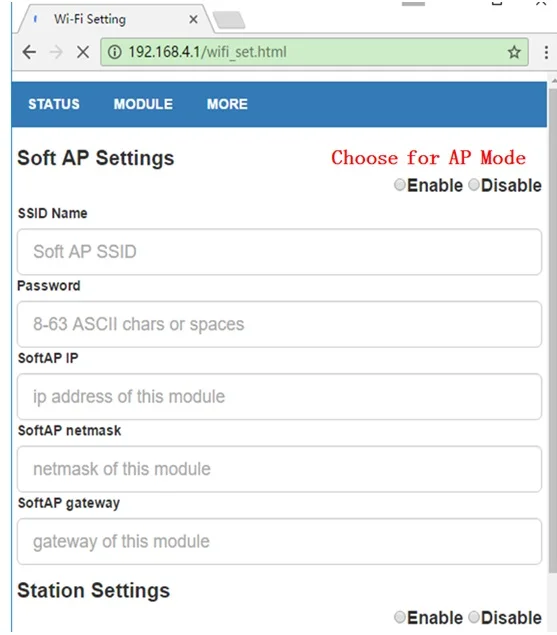

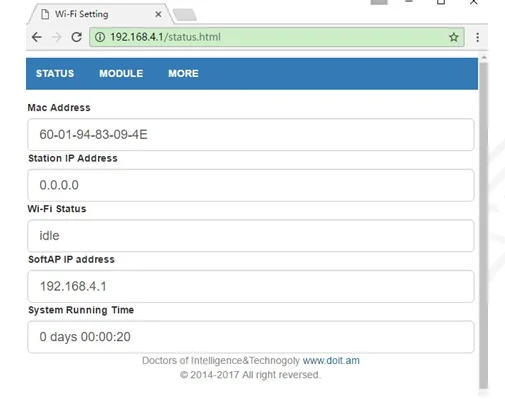

Usage of Web configuration:
This module is already built-in the HTTP Server. Thus, it can configure the parameters by the browsers on pc or mobile phone or other smart devices, without of need of any other tools or Apps. In the factory settings, the module works at AP mode, and the signal is “Doit_WiFi_xxxxxx” , where, “xxxxxx” is the last 6 number of MAC address of this module. Then, one can connect this WiFi hotspot by PCs or phones , and other smart deveices (supportable Android and Ios, Windows) with no password.
CP2102
This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial Converter. Connect MCU easily to your computer!
Stable and reliable chipset CP2102
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85°.
Support: Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.
Stable and reliable chipset CP2102
USB specification 2.0 compliant with full-speed 12Mbps.
Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
All handshaking and modem interface signals.
Baud rates: 300 bps to 1.5 Mbps.
Byte receive buffer; 640 byte transmit buffer.
Hardware or X-On/X-Off handshaking supported.
Event character support Line break transmission.
USB suspend states supported via SUSPEND pins.
Temperature Range: -40 to +85°.
Support: Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40.

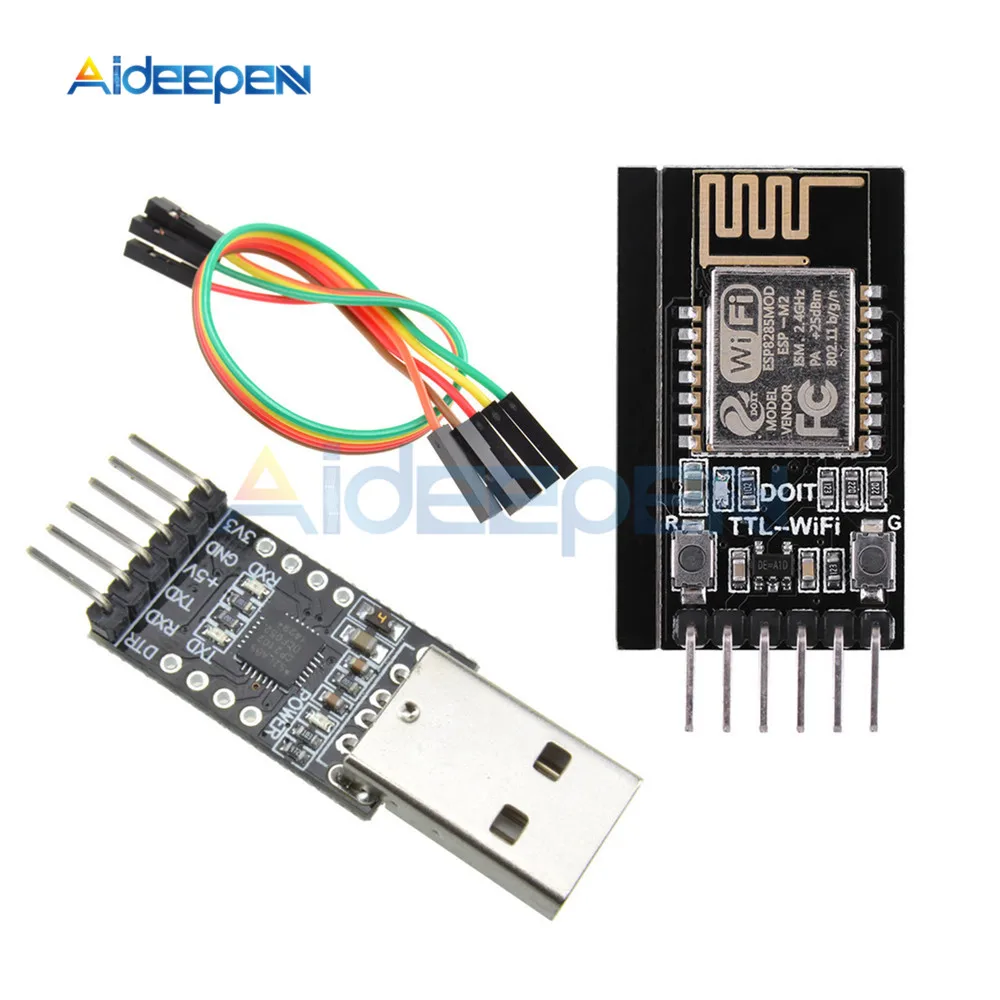

Package Include:
1PC*Wireless Wifi Serial Port TTL to Wifi ESP-M2 ES8285 Module
1PC*USB 2.0 to TTL UART CP2102 Module 6Pin Serial Converter
1PC*4PIN Cable
