Description:
There are two types of reed switches: "normally open" reed switches and "normally closed" reed switches. The metal reeds on a normally open switch stay open when there is no magnet near the switch. In the presence of a magnetic field, the contacts of a normally-open reed switch will close. A normally-closed reed switch is closed when it is not near a magnet; as a magnet is brought close to it, a normally-closed switch will open
Easy installation Reliable performance
Good characteristic of abrasion-proof
Best Choice for you to protect family
Good characteristic of abrasion-proof
Best Choice for you to protect family
Feature:
Color: white
Material: ABS
Dimension: approx. 27 x 14 x 8(mm)
Switch pattern: N/O normally open, alarm-on-broken
Voltage: 100V DC
Rated power: 10W
Actuation distance: 15-25mm
Wire lead: 24 Awg, about 350mm long
Mounting method: SMD (by screws or double-sided tapes)
Recommendations in application: wooden door, window
Color: white
Material: ABS
Dimension: approx. 27 x 14 x 8(mm)
Switch pattern: N/O normally open, alarm-on-broken
Voltage: 100V DC
Rated power: 10W
Actuation distance: 15-25mm
Wire lead: 24 Awg, about 350mm long
Mounting method: SMD (by screws or double-sided tapes)
Recommendations in application: wooden door, window
Package Included:

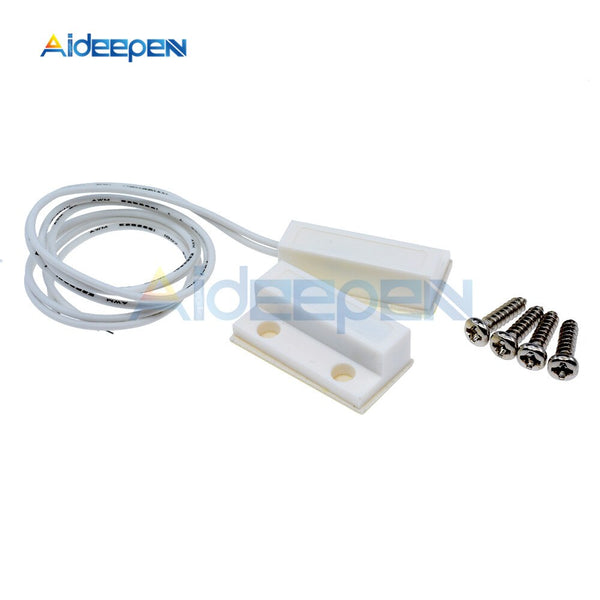

1 x MC-38 Wired Door Window Magnetic Switch Sensor N/O Switch Magnetic Alarm For Home Safe
