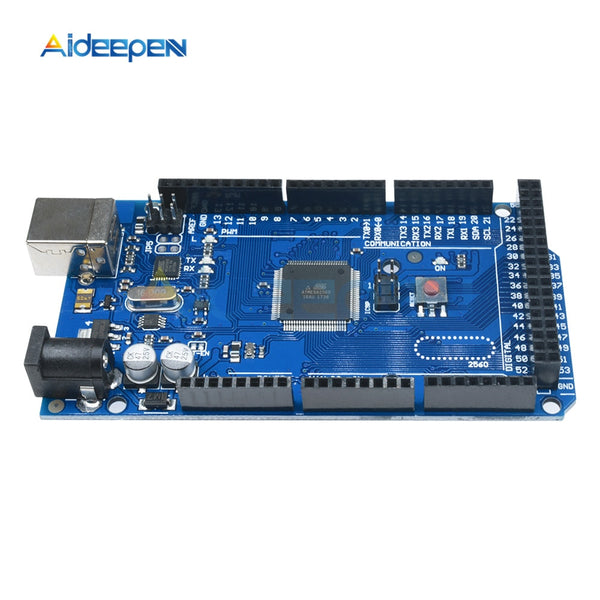

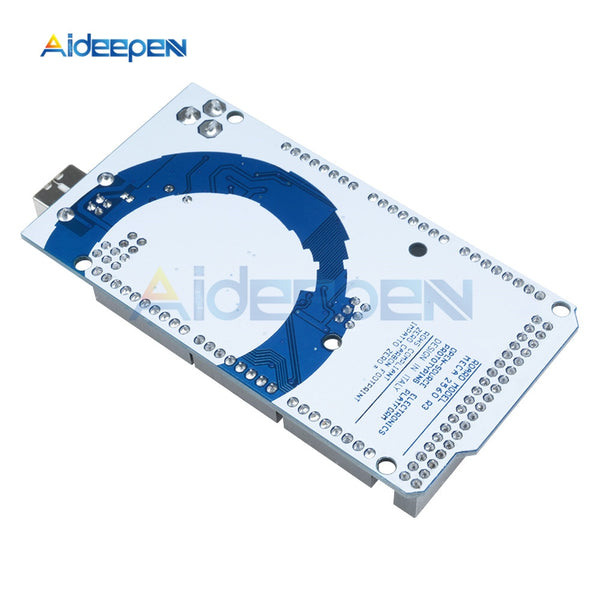

MEGA2560 R3 Control Board ATMEGA2560-16AU ATMEGA16U2 5V 16MHz Module For Arduino with USB Cable with Case
Description:
MEGA2560 R3 Control Board
This is the new MEGA2560 R3. In addition to all the features of the previous board, the MEGA now uses an ATMega16U2 instead of the ATMega8U2 chip. This allows for faster transfer rates and more memory. No drivers needed for Linux or (inf file for Windows is needed and included in the for arduino IDE), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.
The MEGA2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The MEGA2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.
Revision 3 of the board has the following new features:
• pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the for arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
• Stronger RESET circuit.
• Atmega 16U2 replace the 8U2.
The MEGA2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The MEGA2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.
Revision 3 of the board has the following new features:
• pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the for arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
• Stronger RESET circuit.
• Atmega 16U2 replace the 8U2.
Specification:
CH340 MEGA2560
100% new and high quality!!
The Mega 2560 is an update for Mega, which it replaces.
The board is a microcontroller board based on the ATmega2560-16AU .It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed
Product Summary:
CH340G replace the Atmega 8U2/16U2
Specifications:
Microcontroller:ATmega2560
Clock Speed:16 MHz
EEPROM:4 KB
SRAM:8 KB
Flash Memory:256 KB of which 8 KB used by bootloader
Operating Voltage:5V
Input Voltage (recommended):7-12V
Analog Input Pins:16
Digital I/O Pins:54 (of which 14 provide PWM output)
DC Current for 3.3V Pin:50 mA
DC Current per I/O Pin:40 mA
Size:100*55mm
Package Include:

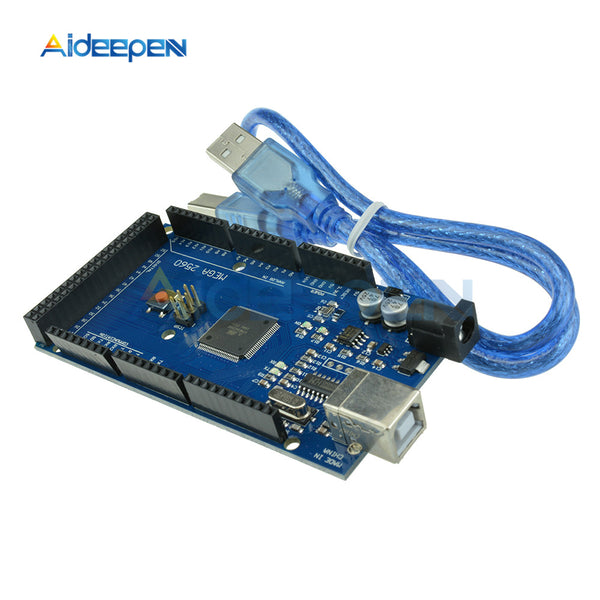

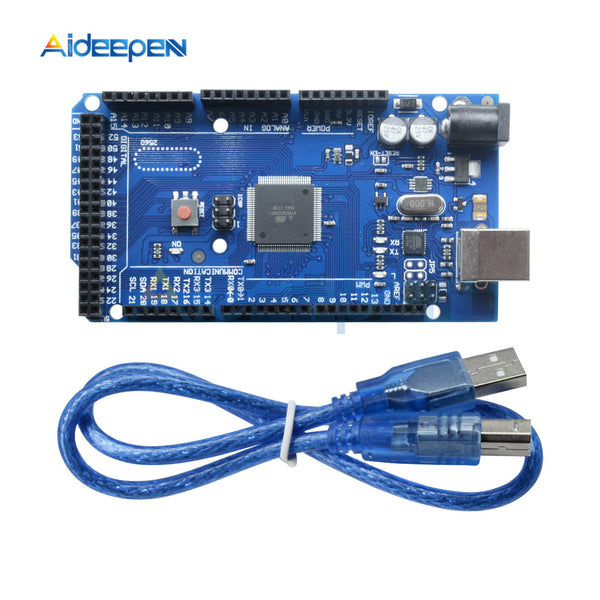

1 x Board + USB Cable For Arduino
