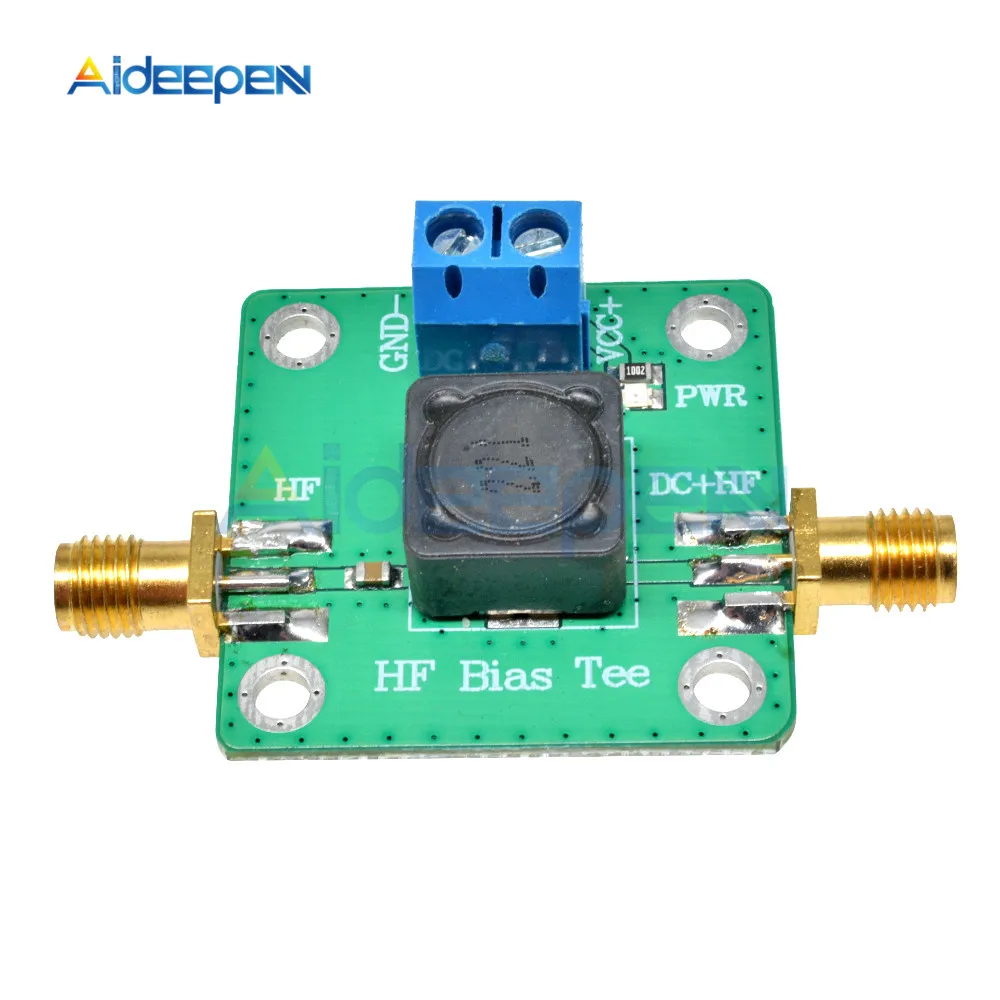

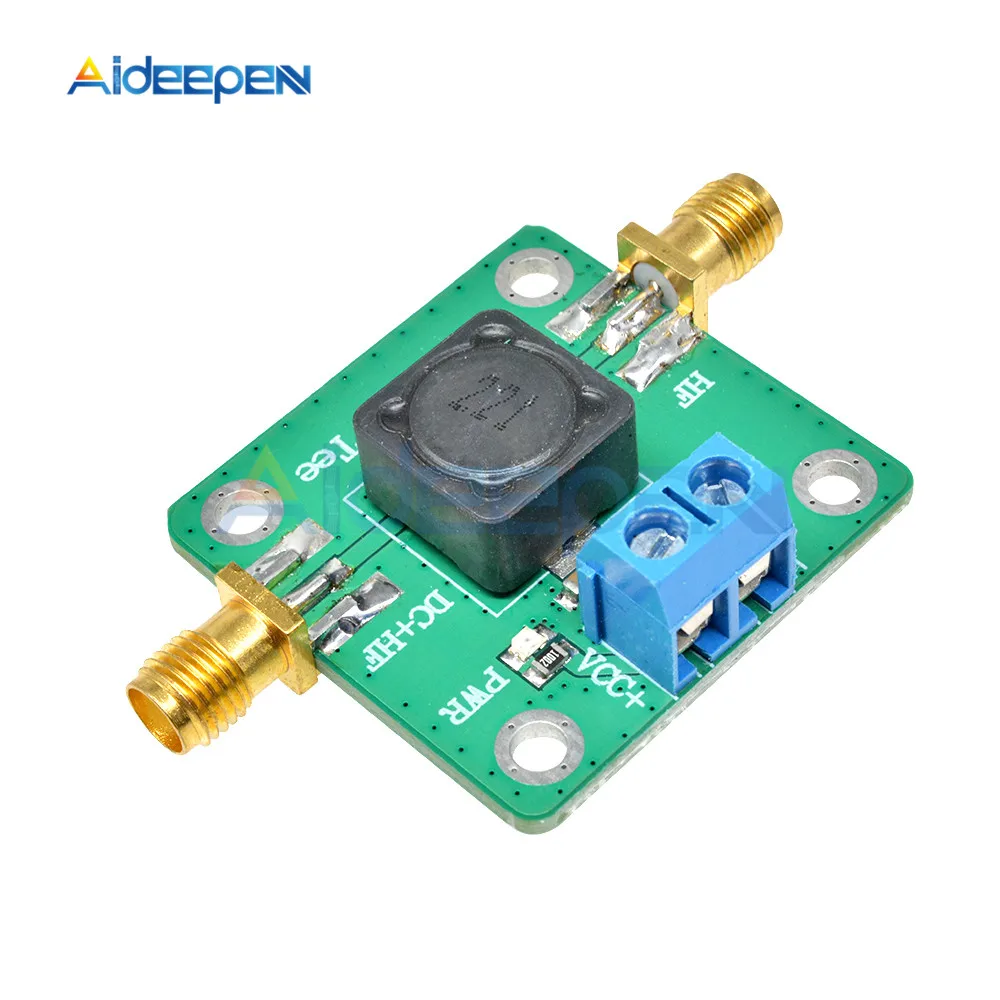

RF Microwave HF DC Bias Tee 50K-60MHz Dc Feeder FOR Short Wave RTL SDR LNA HAM Radio Amplifier Antenna Module
Description:
Active antenna RF power supply
The output of the wideband amplifier is blocked
Communication data is injected through the RF side
Working parameters:
1. Frequency Range: 50K-60MHz
2. Insertion loss: 0.1dB 100KHz 0.2dB 60MHz
3. Maximum voltage: 50V
4. Maximum current: 500mA
5. RF connector: SMA-K (outer screw inner hole)
6. System impedance: 50 ohms
7. Dimensions: 33mmx33mm without connectors
Wiring method:
1.DC: External DC power supply
2.RF: RF signal end (this port can only transmit RF signal)
3.RF+DC: RF DC offset (this port can transmit RF and DC offset)
4.GND-: Common ground terminal for DC power supply
5.VCC+: DC power supply terminal
Package Included:
1 x HF Bias Tee 50K-60MHz Dc Feeder FOR Short Wave HAM Radio Amplifier
