Description:
Number of input channels: 2 channel
Sampling channel: 1 channel
The maximum sampling frequency: 16MHz
The maximum analog bandwidth: 3MHz
Input voltage range: -10V to + 10V
Sensitivity: 78mV
Maximum vertical resolution: 256 level
Digital parameter:
Number of channels: 8
Input voltage: 0V-5.3V
Input Low level: <0.8V
Input high level: >1.4V
Supported protocols: Serial Peripheral Interface, IIC, UART, SMBus, I2S, CAN, Parallel, Custom, Search, Async, 1-Wite, PS / 2
The communication interface parameters:
USB parameters: USB2.0 high-speed 480Mbps
System requirement:
Supported operating systems Win2000/XP/Vista/WIN7 (32bit)
Celeron 4 2.0G or Pentium 4 1.8G higher processor
USB2.0 high speed interface. It does not support full speed USB2.0 or USB1.1
Memory Requirements 128M or more
2G or more hard disk
You need to install Framework 3.5 SP1
Note:
If your system is WINDOWS XP, please check whether your computer has ".NET 3.5 SP1" this component, if not, go to the website to download and install.
Package included:
1 x Machine

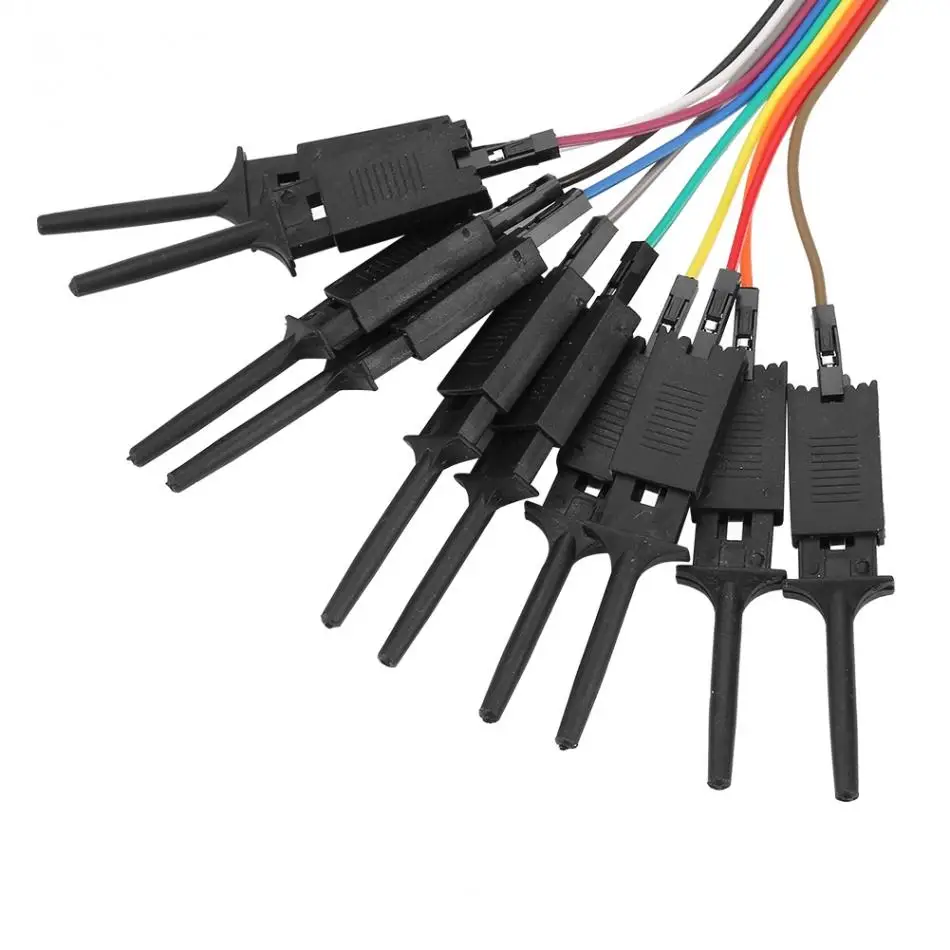

1 x Testing clamp cable
1 x USB connection cable

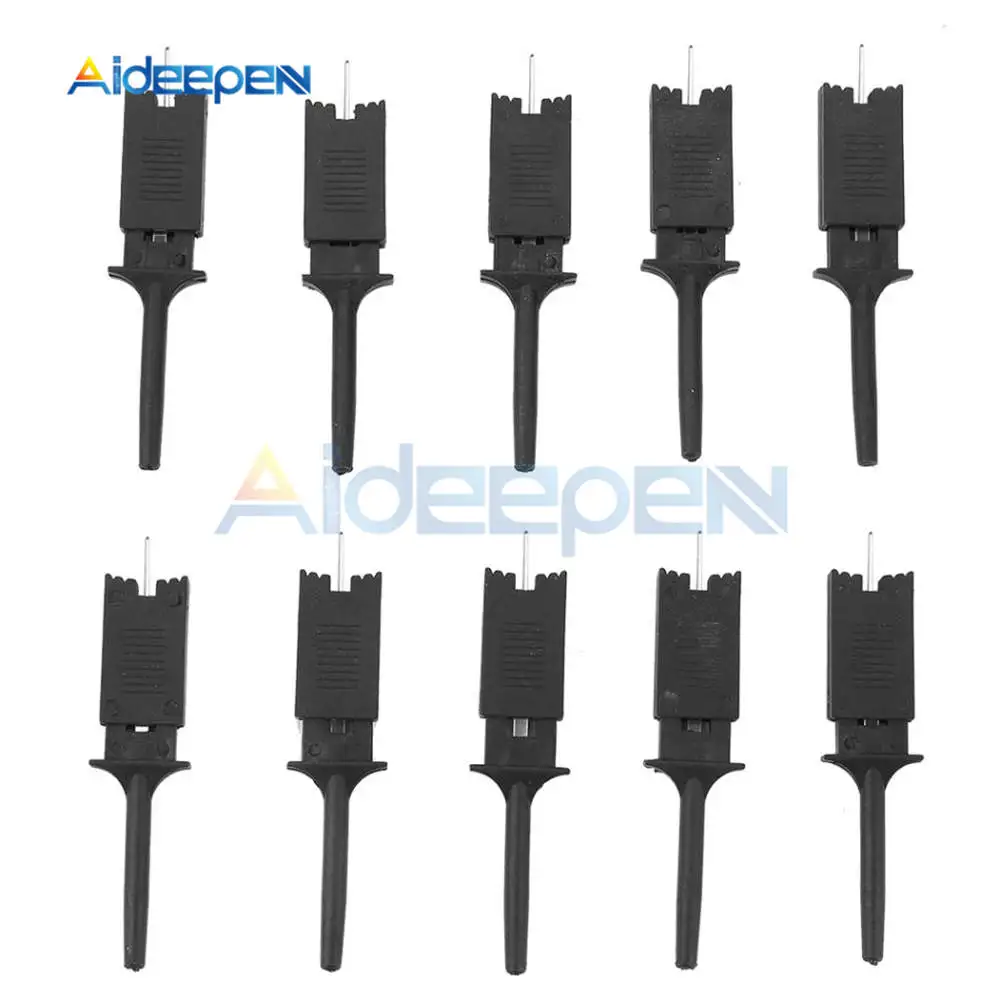

10 x Test clip
